Caterpillar D5G

General Specifications:

· Engine Power: 108 kW (145 hp) @ 1,800 rpm

· Operating Weight: 15,400 kg (33,950 lb) (with standard equipment)

· Blade Capacity: 2.7 m³ (3.5 yd³) to 3.3 m³ (4.3 yd³), depending on configuration

· Fuel Tank Capacity: 340 L (89.9 gal)

· Hydraulic System Capacity: 90 L (23.8 gal)

· Cooling System Capacity: 21 L (5.5 gal)

· Transmission Type: Powershift, 3-speed forward, 3-speed reverse

Dimensions:

· Overall Length (with blade): 5,630 mm (221.3 in)

· Overall Width (with blade): 3,275 mm (128.0 in)

· Overall Height (top of cab): 3,270 mm (128.7 in)

· Track Length: 3,000 mm (118.1 in)

· Track Width: 510 mm (20.1 in) (varies depending on configuration)

· Track Gauge: 1,900 mm (74.8 in)

· Ground Clearance: 350 mm (13.8 in)

Performance:

· Maximum Travel Speed: 9.5 km/h (5.9 mph) (high range)

· Blade Lift Height: 1,130 mm (44.5 in)

· Maximum Drawbar Pull: 103.4 kN (23,200 lbf)

· Max Blade Angle: 25° (varies by blade type)

· Max Reach of Blade: 1,070 mm (42.1 in)

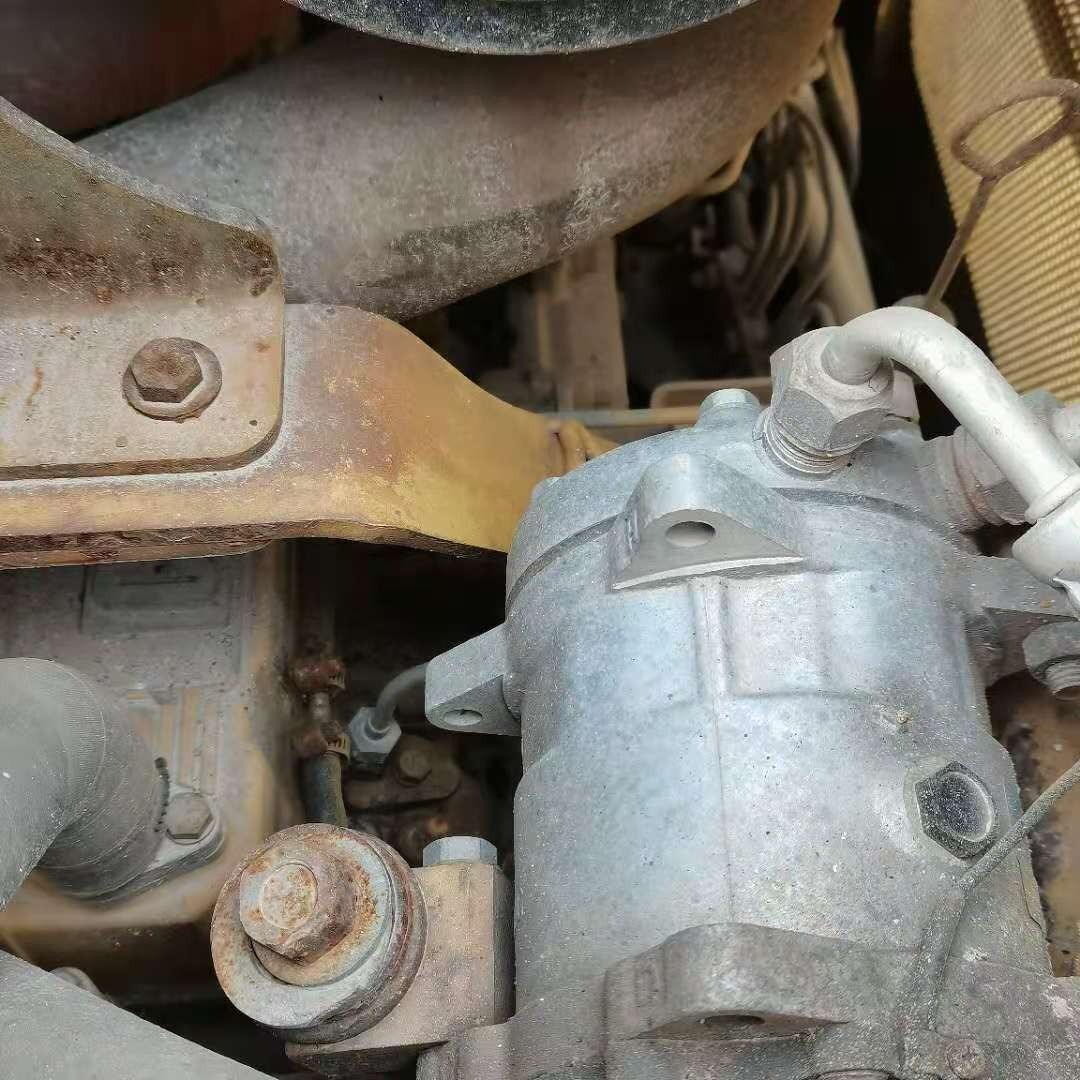

Engine:

· Engine Model: Caterpillar 3054T

· Engine Type: Turbocharged, 4-cylinder, diesel engine

· Displacement: 4.4 L (268 in³)

· Fuel Type: Diesel

· Emissions Standard: Meets Tier 3 / Stage IIIA (varies by region)

· Cooling System: Heavy-duty cooling system to ensure optimal performance under challenging working conditions

Hydraulics:

· Hydraulic System Type: Load-sensing, variable-displacement pump

· Pump Flow: 102 L/min (26.9 gpm)

· Hydraulic Pressure: 17.2 MPa (2,500 psi)

· Lift Cylinder Force: 69 kN (15,500 lbf)

· Tilt Cylinder Force: 41 kN (9,200 lbf)

Operator Station:

· Cab Type: ROPS (Roll-Over Protection System) and FOPS (Falling Object Protection System)

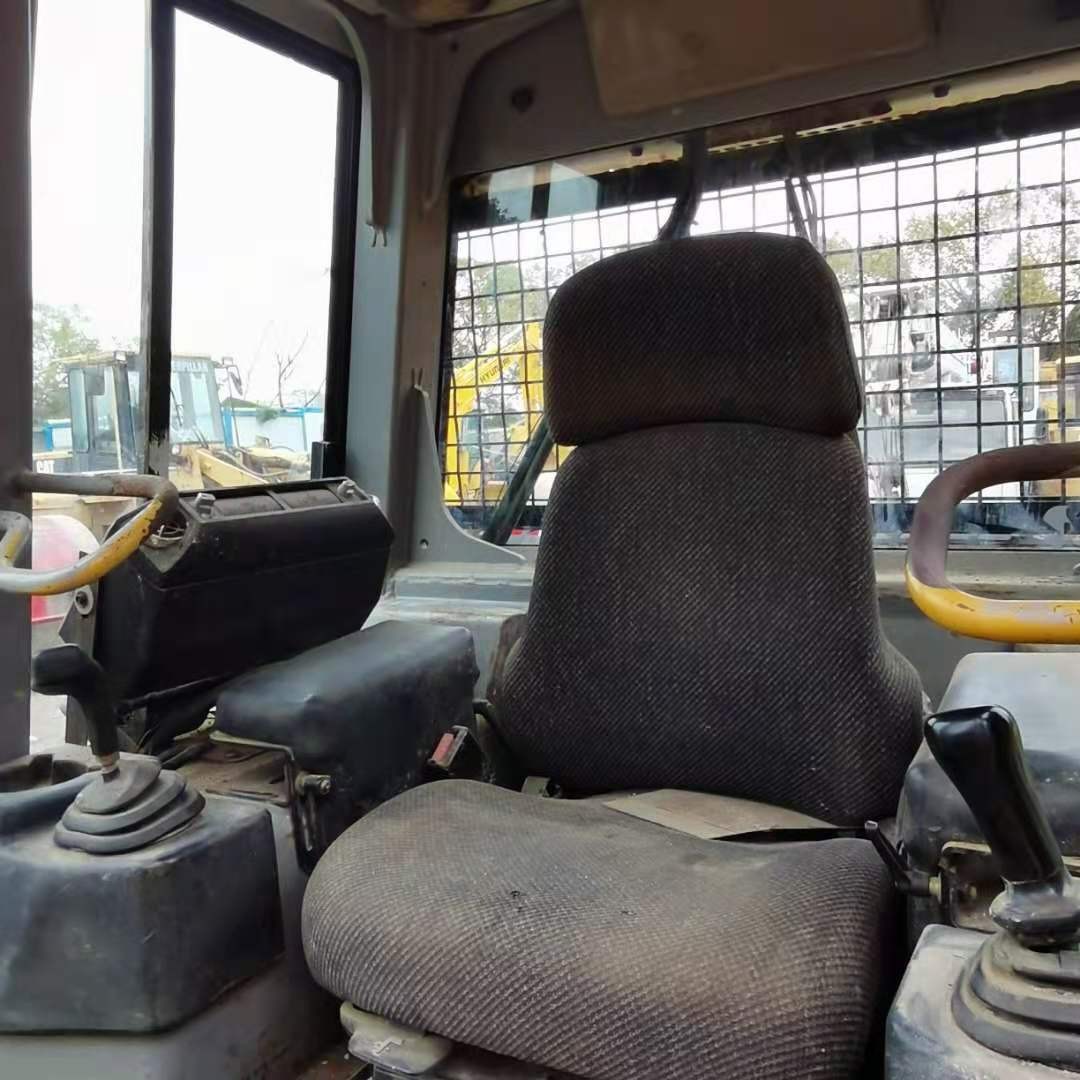

· Seating: Adjustable, air-suspended seat for comfort during long hours of operation

· Joystick Controls: Easy-to-use joystick controls for blade and steering functions

· Climate Control: Air-conditioned, sealed cab for comfort in various working environments

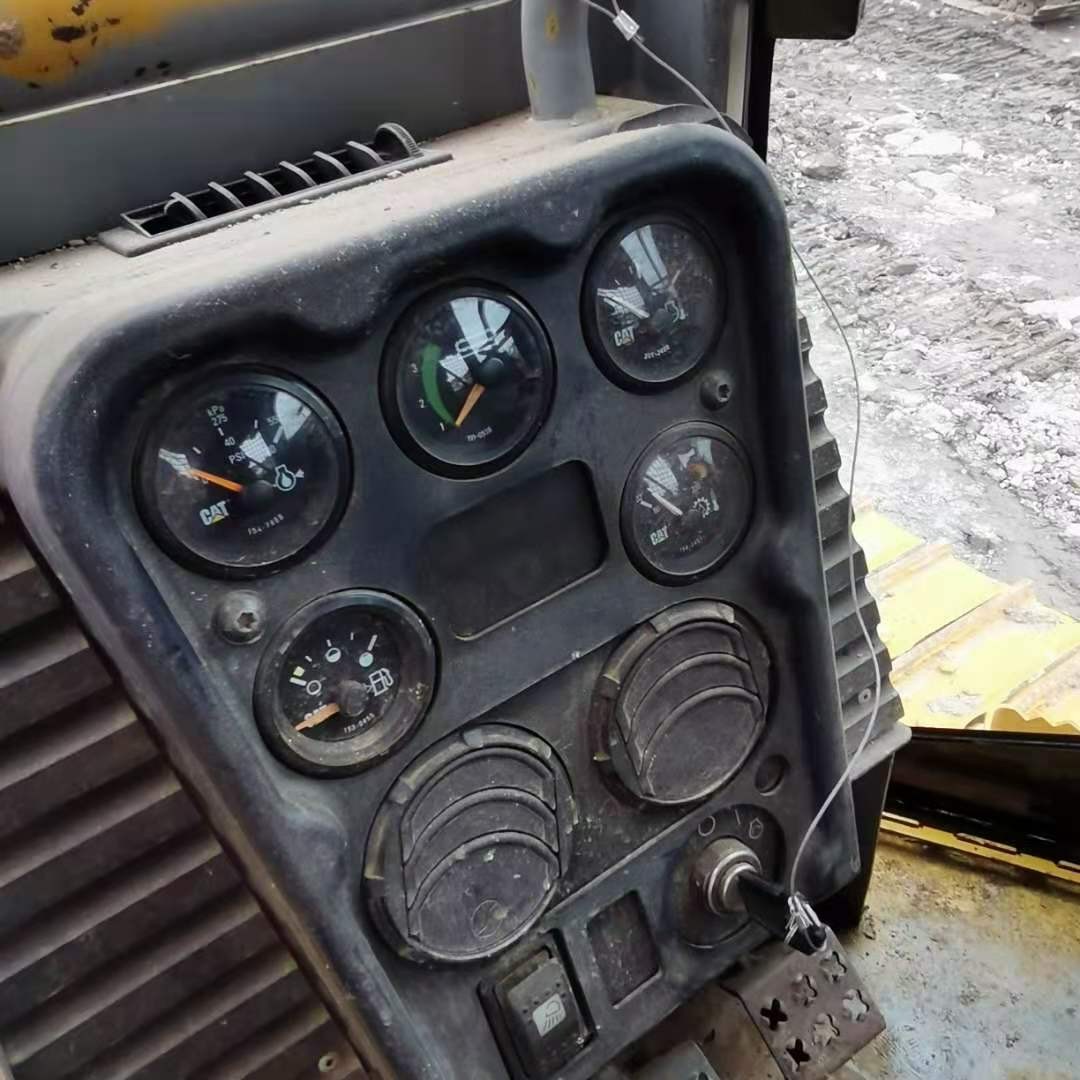

· Display: Digital instrument panel for diagnostics, fuel consumption, and machine status

· Visibility: Excellent visibility with large windows and rearview mirrors for increased safety and control

Performance Features:

· Powershift Transmission: Smooth shifting of gears that enhances fuel efficiency and reduces operator fatigue

· Hydraulic Control: Advanced hydraulic system for smooth and efficient operation of the blade and other attachments

· Grade Control: Optional systems for precise grading and leveling tasks

· Hydraulic Blade: Can be equipped with multiple blade types, including semi-universal or straight, depending on the application

· Auto-idle System: Reduces engine speed when the machine is idle, helping to conserve fuel

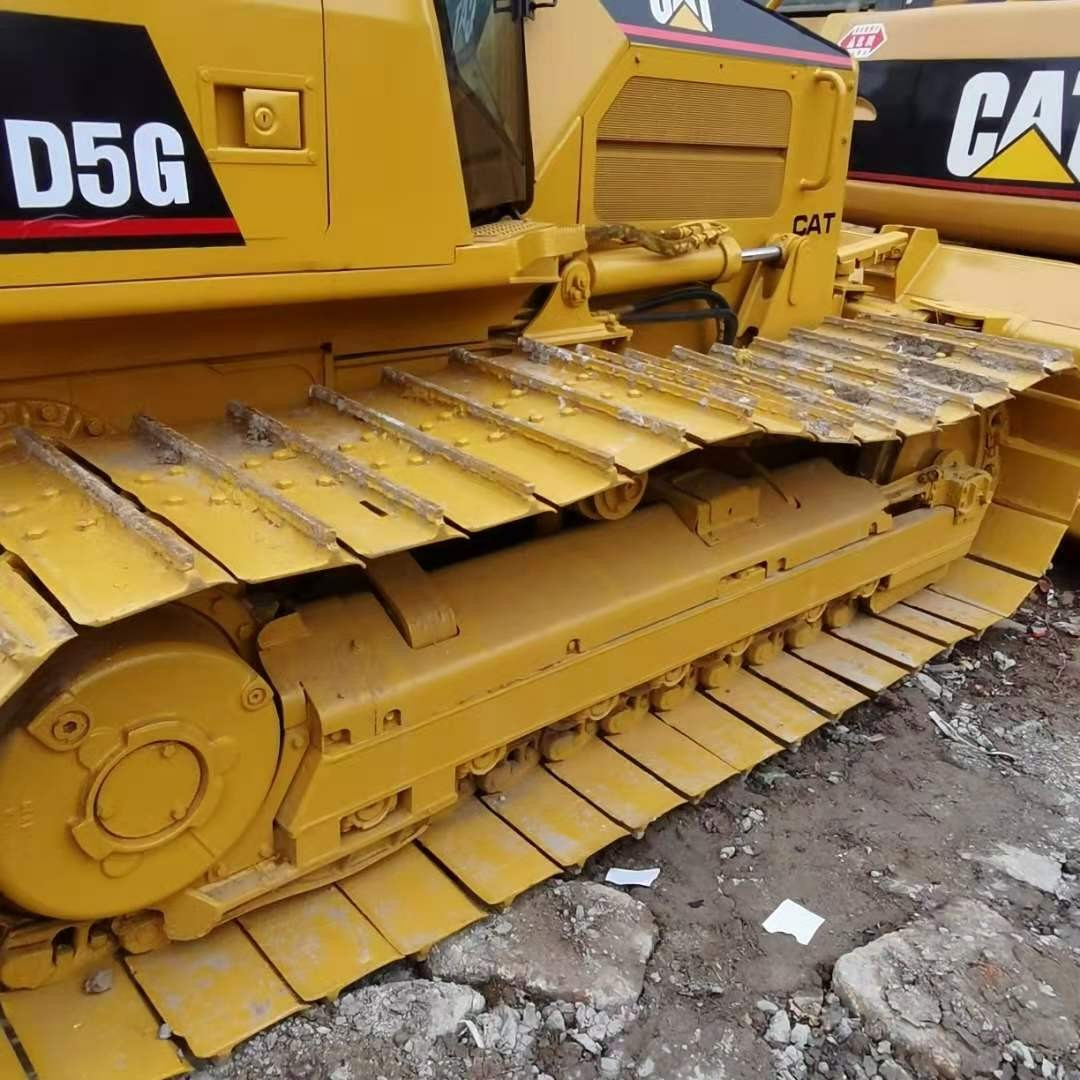

Undercarriage:

· Track Type: Sealed and lubricated track (SALT) for extended track life and reduced maintenance

· Track Rollers: Durable, long-lasting track rollers

· Final Drive: Direct drive for improved power transfer efficiency and longevity

· Track Frame: Reinforced design for enhanced stability and durability in rough terrain

Safety Features:

· ROPS/FOPS Certified: Cab meets safety standards to protect the operator in case of a rollover or falling debris

· Emergency Shutdown: Quick shutdown system for emergency situations

· Stability Control: Designed to maintain stability even in challenging terrain and while performing heavy-duty tasks

· Lighting Package: Includes standard lights for nighttime operation or working in low visibility conditions

Miscellaneous:

· Serviceability: Designed for easy maintenance with wide-opening engine compartments and centralized service points

· Fuel Efficiency: The D5G is designed to provide excellent fuel economy, making it cost-effective for long-term use

· Durability: Built with high-quality components for a long service life and low operational costs

· Attachments: Can be equipped with a wide range of attachments, including rippers and winches, to extend its functionality
