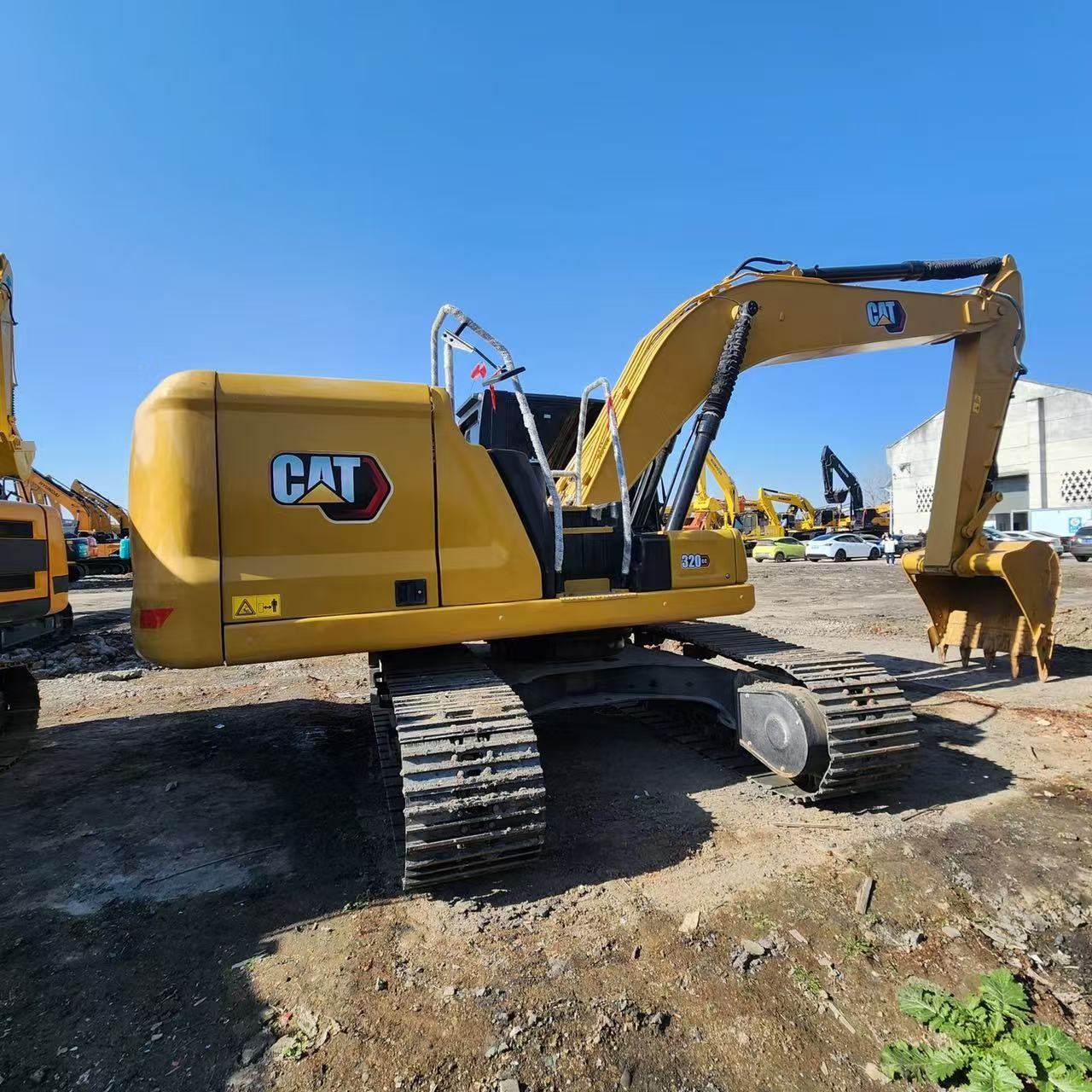

Caterpillar 320GC

General Specifications:

· Engine Power: 130 kW (174 hp) @ 2,000 rpm

· Operating Weight: Around 20,700 - 22,500 kg (depending on configuration)

· Bucket Capacity: 0.8 m³ to 1.1 m³ (depending on the bucket)

· Fuel Tank Capacity: 340 L (89.8 gal)

· Cooling System Capacity: 40 L (10.6 gal)

· Hydraulic System Capacity: 208 L (55 gal)

· Swing Mechanism Capacity: 50 L (13.2 gal)

Dimensions:

· Transport Length: 9,520 mm (374 in)

· Transport Width: 2,950 mm (116.1 in)

· Transport Height: 3,225 mm (126 in)

· Track Width: 600 mm (24 in)

· Track Length: 4,240 mm (167 in)

Performance:

· Maximum Digging Depth: 6,630 mm (261 in)

· Maximum Reach at Ground Level: 9,460 mm (373 in)

· Maximum Digging Radius: 9,950 mm (391 in)

· Bucket Digging Force: 127 kN (28,500 lbf)

· Arm Digging Force: 91.6 kN (20,600 lbf)

Engine:

· Engine Model: Cat C4.4 ACERT

· Displacement: 4.4 L

· Fuel Type: Diesel

· Emissions Standard: Tier 4 Final / Stage IV

Hydraulics:

· Pump Type: Variable displacement

· Pump Flow: 240 L/min (63.4 gpm)

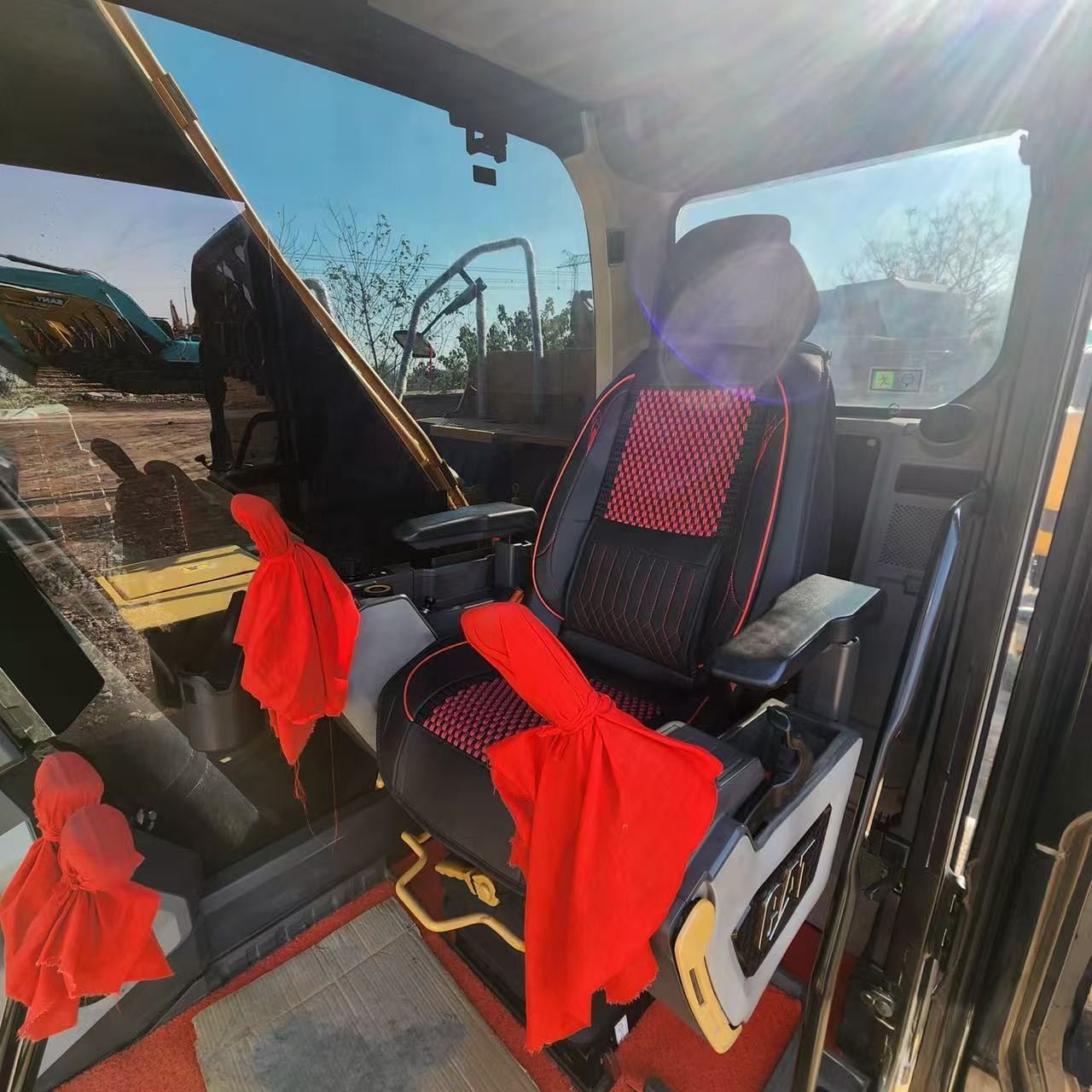

Operator Station:

· Cab Type: ROPS (Roll-Over Protection System) and FOPS (Falling Object Protection System)

· Air Conditioning: Available as an option

· Seating: Adjustable, high-back seat

Performance Features:

· Smart Mode: Automatically adjusts the engine and hydraulic power for optimal fuel efficiency and performance.

· Eco Mode: Improves fuel economy without sacrificing productivity.

· Advanced Hydraulic System: Designed to optimize fuel efficiency and improve performance.

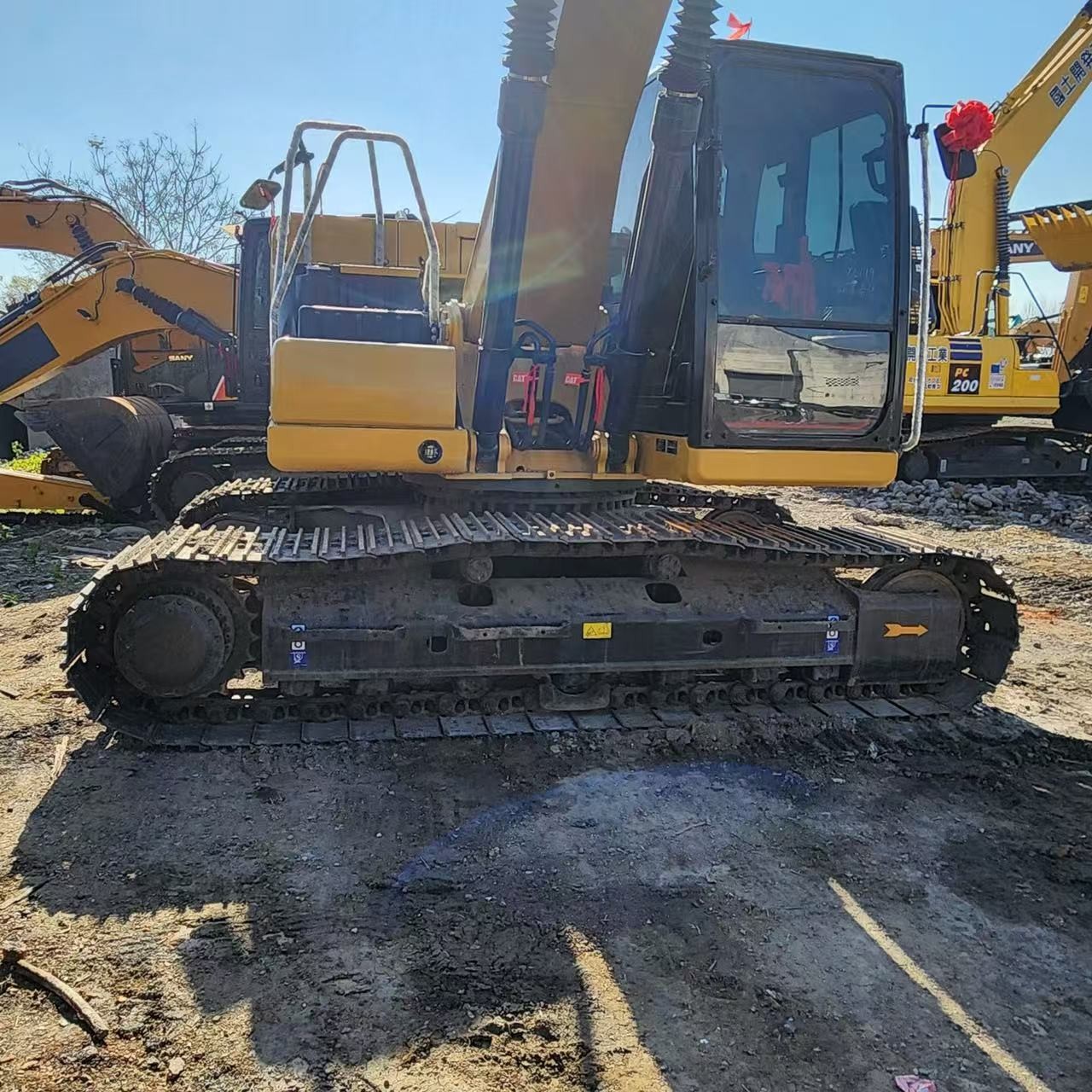

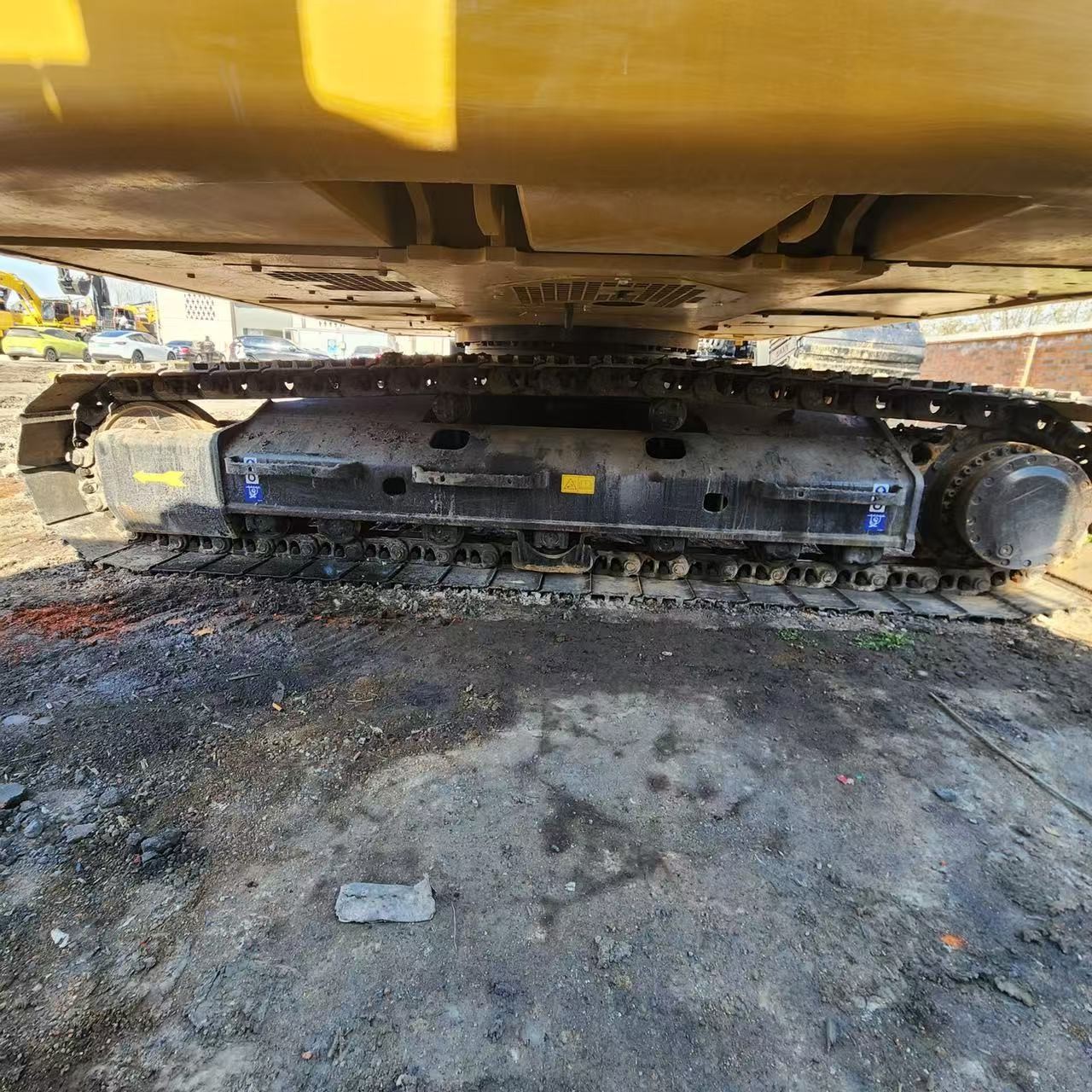

Undercarriage:

· Track Type: Triple grouser

· Undercarriage Design: Long-life components with the option of extended undercarriage for improved stability in demanding applications.

Safety Features:

· Standard Rearview Camera: Helps improve visibility around the machine.

· Anti-theft System: An option to secure the excavator from unauthorized use.

· Tool Control System: Allows the operator to easily control the attachments.

Miscellaneous:

· Automatic Engine Speed Control: Helps reduce fuel consumption.

· Serviceability: Easy access to maintenance points and long service intervals.
