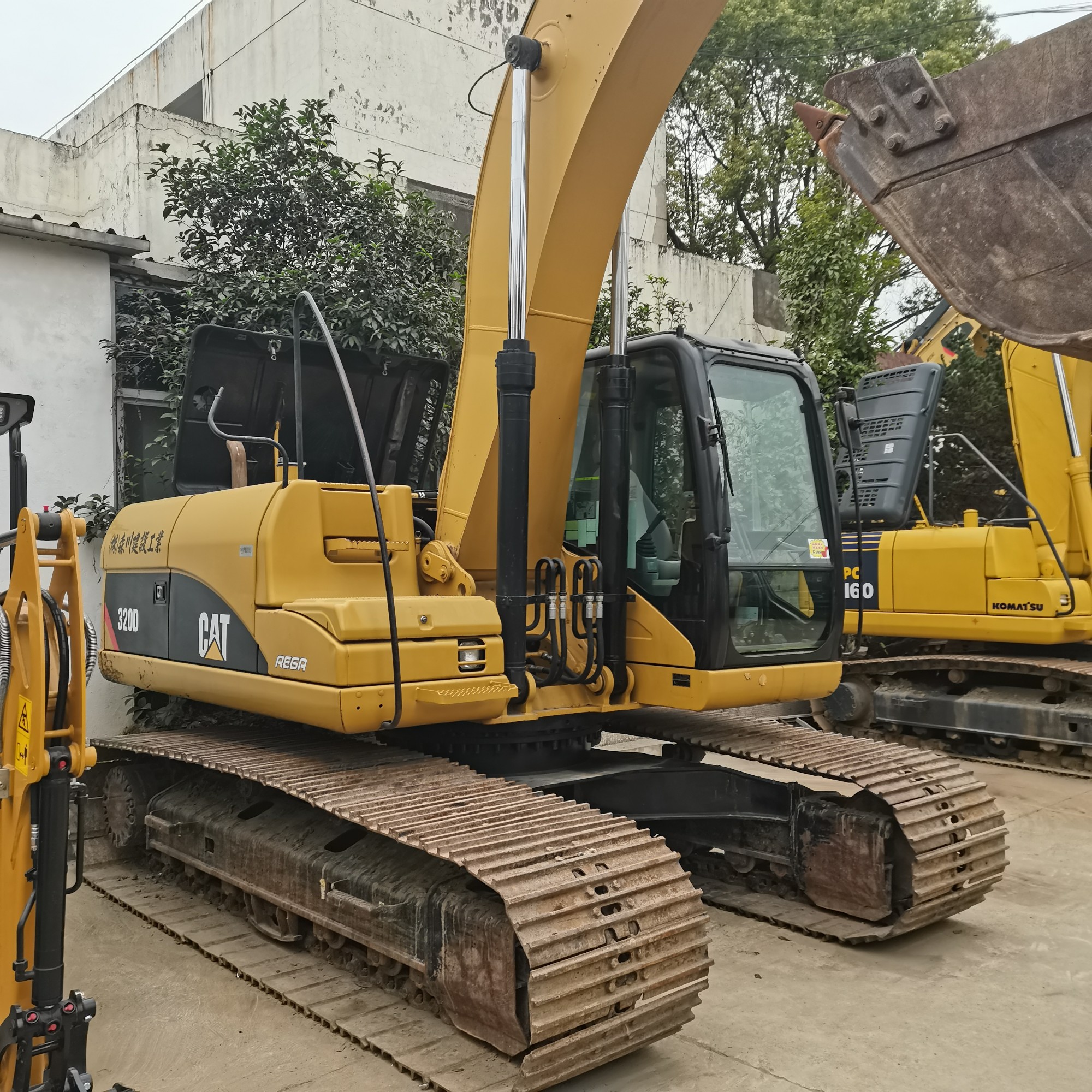

Caterpillar 320D

General Specifications:

• Engine Power: 129 kW (173 hp) @ 1,800 rpm

• Operating Weight: 20,000 kg - 22,800 kg (depending on configuration)

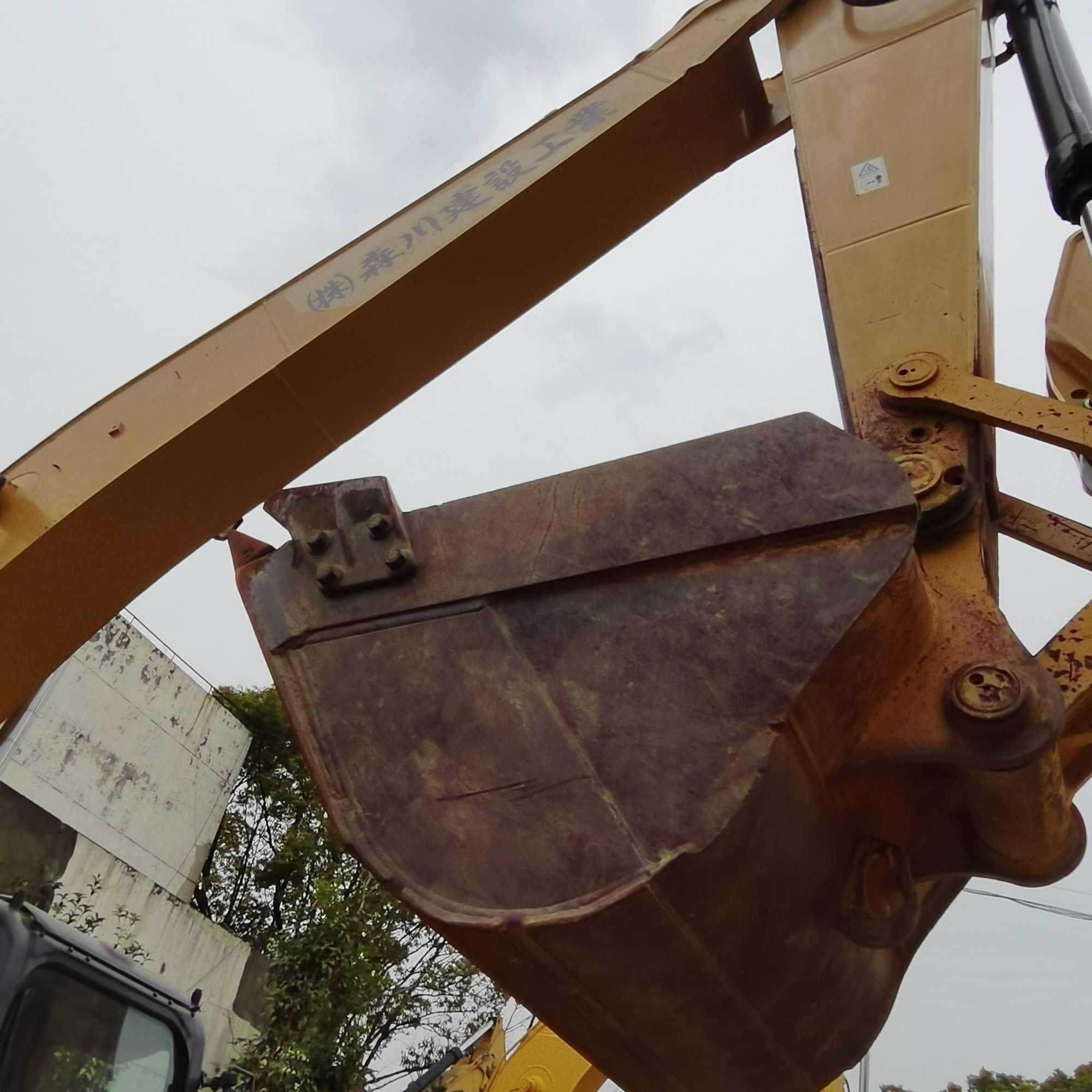

• Bucket Capacity: 0.8 m³ to 1.2 m³ (depending on the bucket)

• Fuel Tank Capacity: 320 L (84.5 gal)

• Cooling System Capacity: 34.7 L (9.2 gal)

• Hydraulic System Capacity: 215 L (56.8 gal)

• Swing Mechanism Capacity: 37 L (9.8 gal)

Dimensions:

• Transport Length: 9,500 mm (373 in)

• Transport Width: 2,950 mm (116 in)

• Transport Height: 3,240 mm (128 in)

• Track Width: 600 mm (24 in)

• Track Length: 4,410 mm (173 in)

Performance:

• Maximum Digging Depth: 6,760 mm (266 in)

• Maximum Reach at Ground Level: 9,450 mm (372 in)

• Maximum Digging Radius: 9,850 mm (388 in)

• Bucket Digging Force: 130 kN (29,200 lbf)

• Arm Digging Force: 93 kN (20,900 lbf)

Engine:

• Engine Model: Cat C6.4 ACERT

• Displacement: 6.4 L

• Fuel Type: Diesel

• Emissions Standard: Tier 3 / Stage IIIA (varies by region)

• Turbocharged and Aftercooled: Yes

Hydraulics:

• Pump Type: Variable displacement piston

• Pump Flow: 410 L/min (108.2 gpm)

• System Pressure: 35 MPa (5,076 psi)

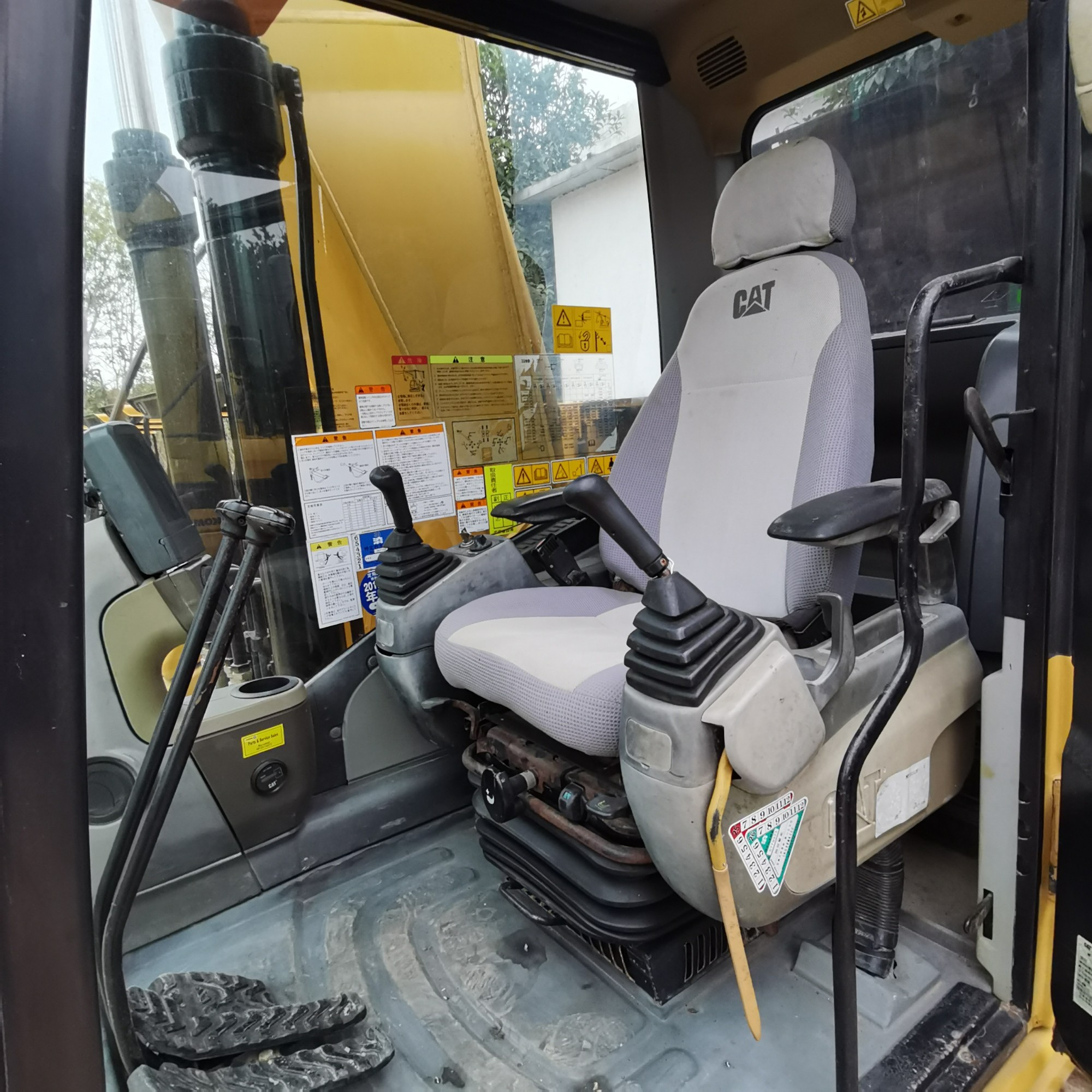

Operator Station:

• Cab Type: ROPS (Roll-Over Protection System) and FOPS (Falling Object Protection System)

• Seating: High-back, adjustable seat for comfort

• Climate Control: Air conditioning and heating options

• Joystick Controls: Ergonomic controls for easy operation

• Display: LCD monitor for machine diagnostics, fuel efficiency, and operation settings

Performance Features:

• Auto Idle: Reduces engine speed when the machine is idling, saving fuel.

• Power Mode: Provides more hydraulic power for tough digging applications.

• Smart Hydraulic System: Optimizes the use of hydraulic power for better performance and fuel efficiency.

• Economy Mode: Allows for lower fuel consumption without compromising productivity.

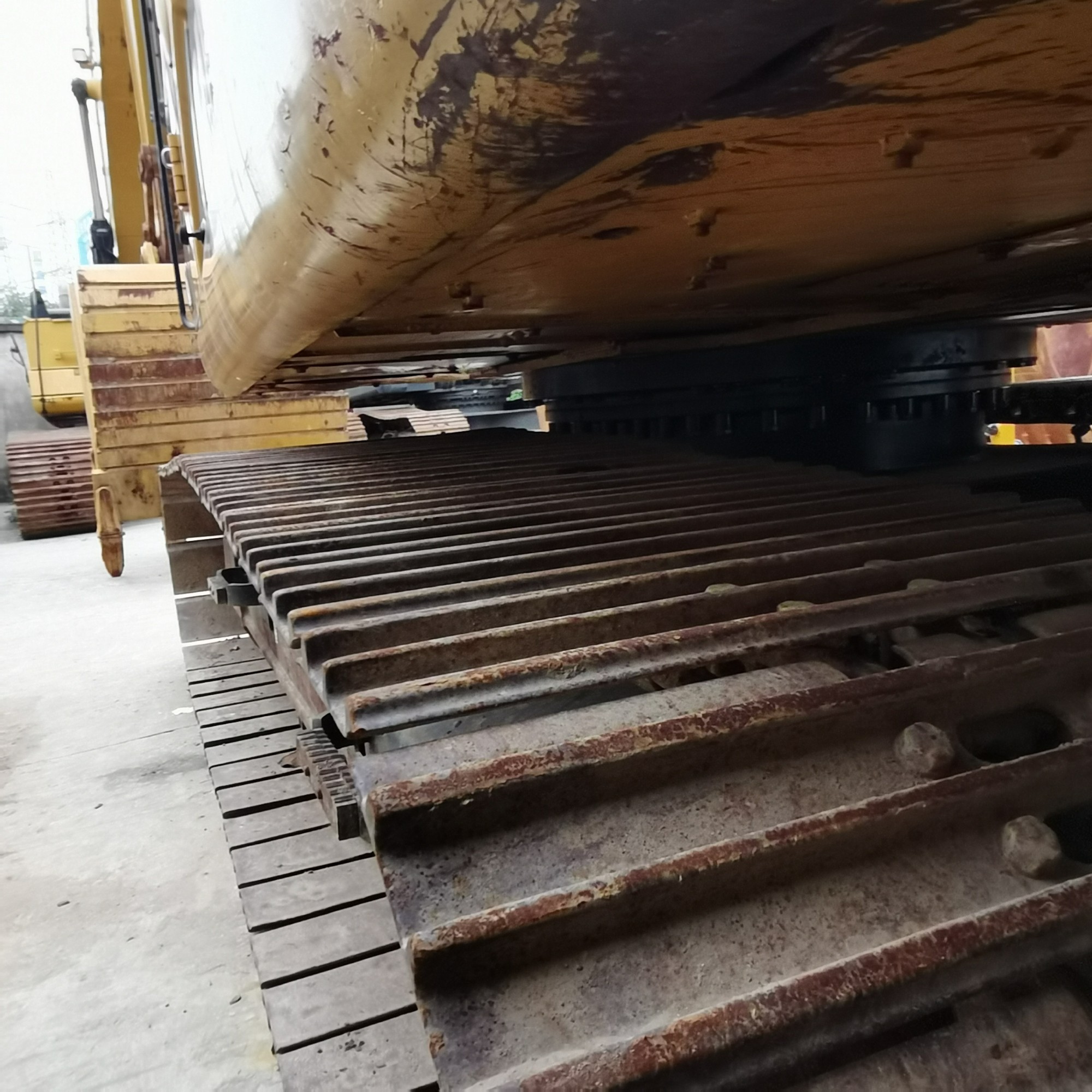

Undercarriage:

• Track Type: Triple grouser

• Undercarriage Design: Durable, long-lasting with extended service life components

Safety Features:

• Rearview Camera: Standard on many models for improved visibility.

• Anti-theft System: Helps to secure the machine from unauthorized use.

• Operator Presence Sensing: Ensures the operator is properly positioned to control the machine.

Miscellaneous:

• Automatic Engine Speed Control: Helps save fuel when the machine is not in use.

• Easy Service Access: Maintenance points are designed for easy access, reducing downtime.

• Low Noise Levels: Designed for quieter operation to meet global standards.
