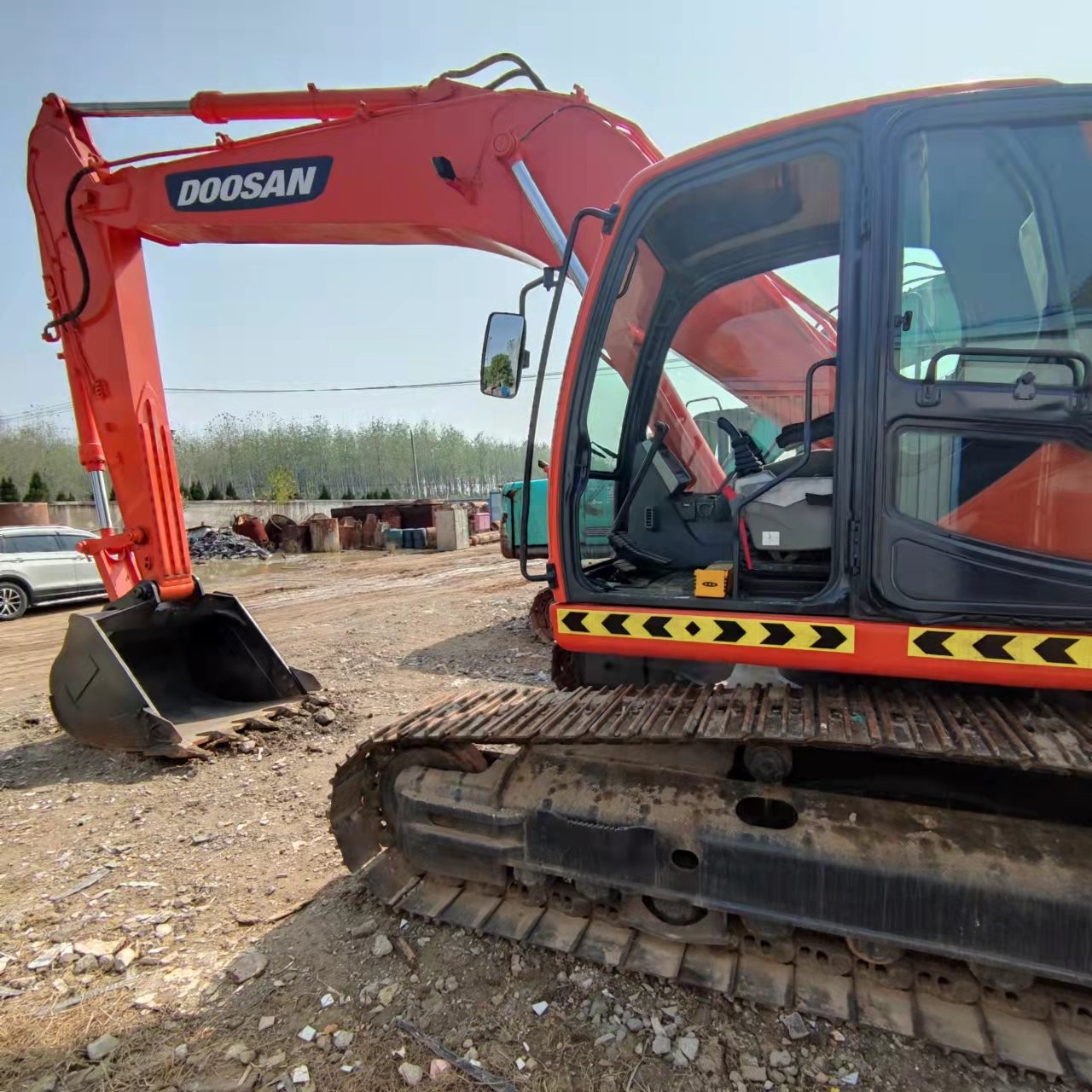

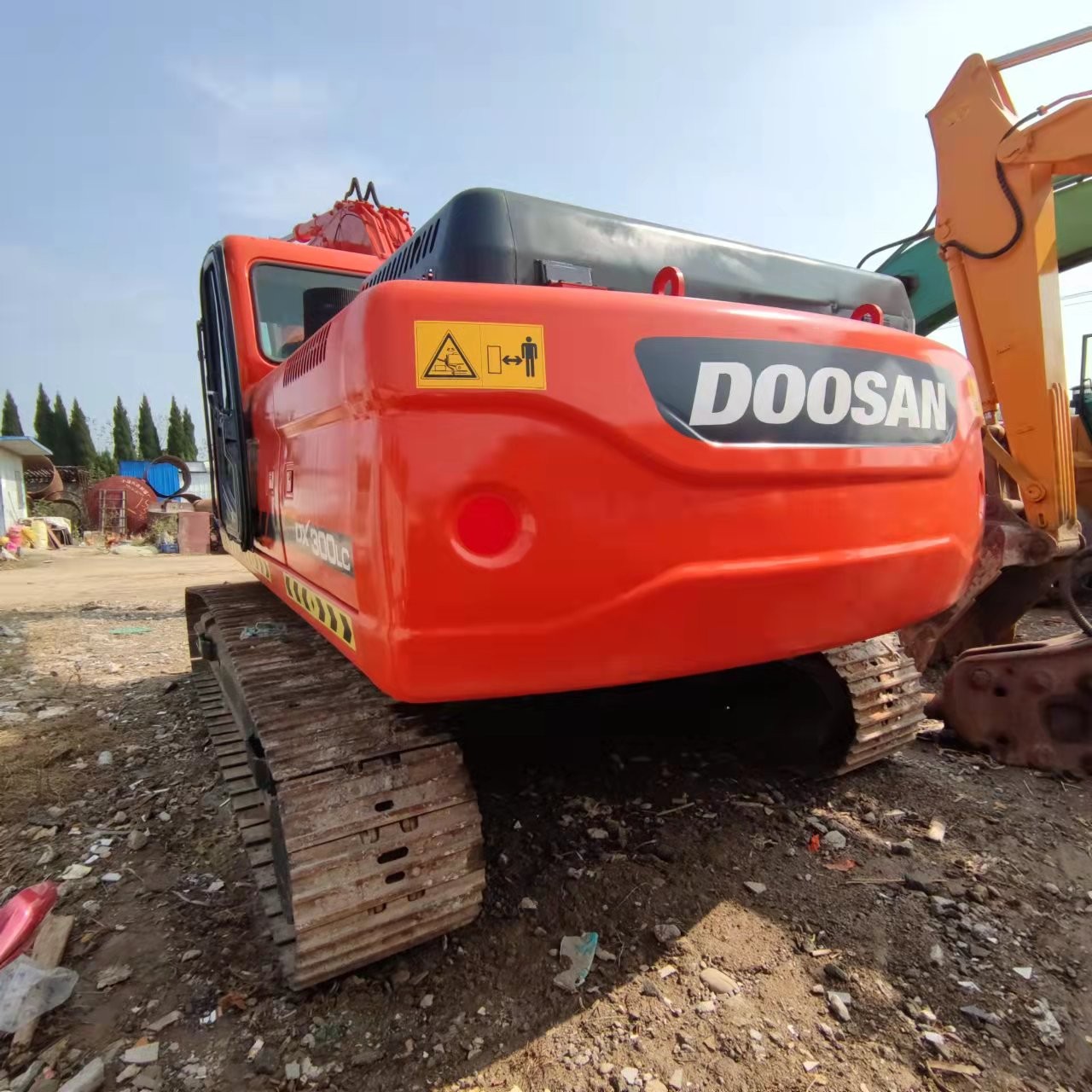

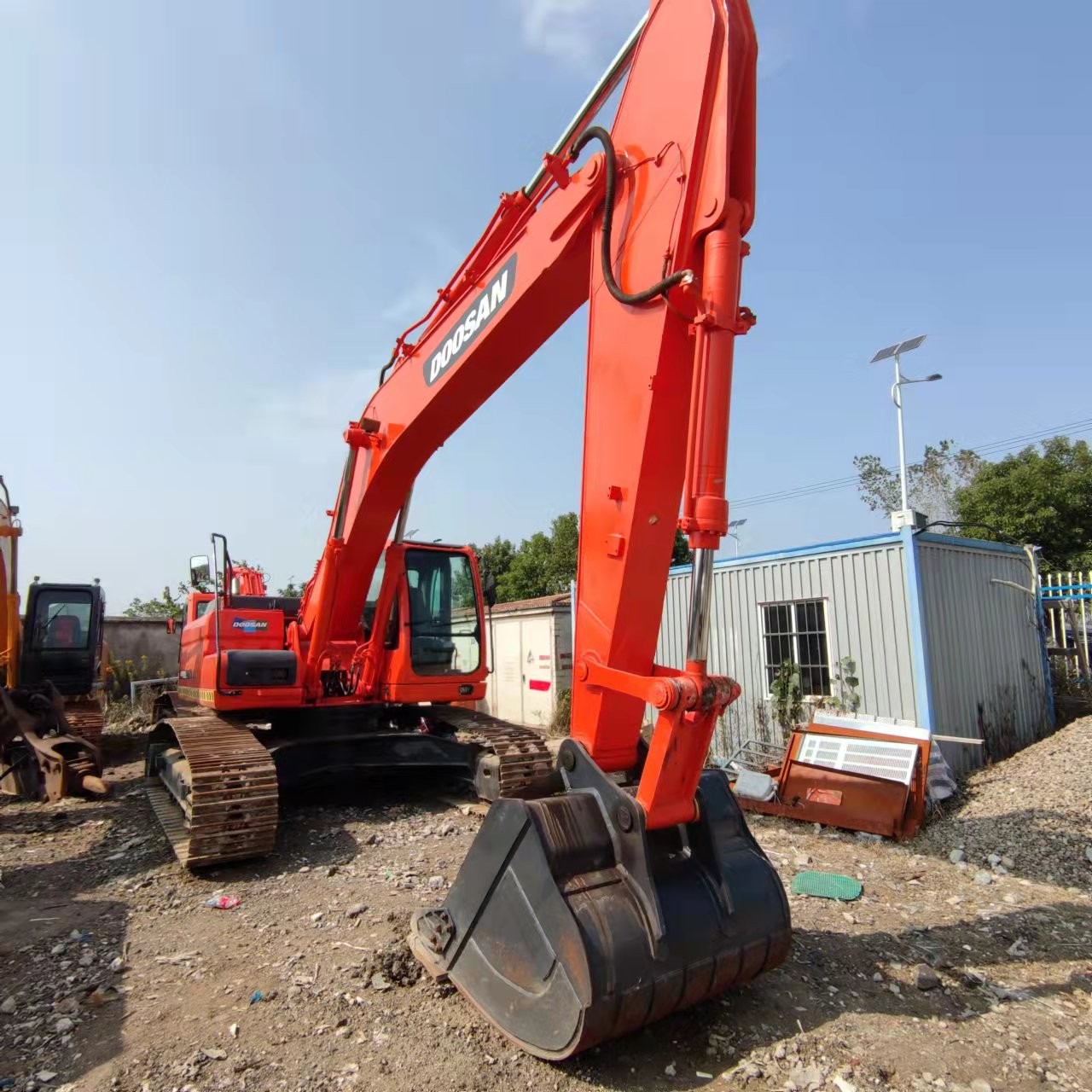

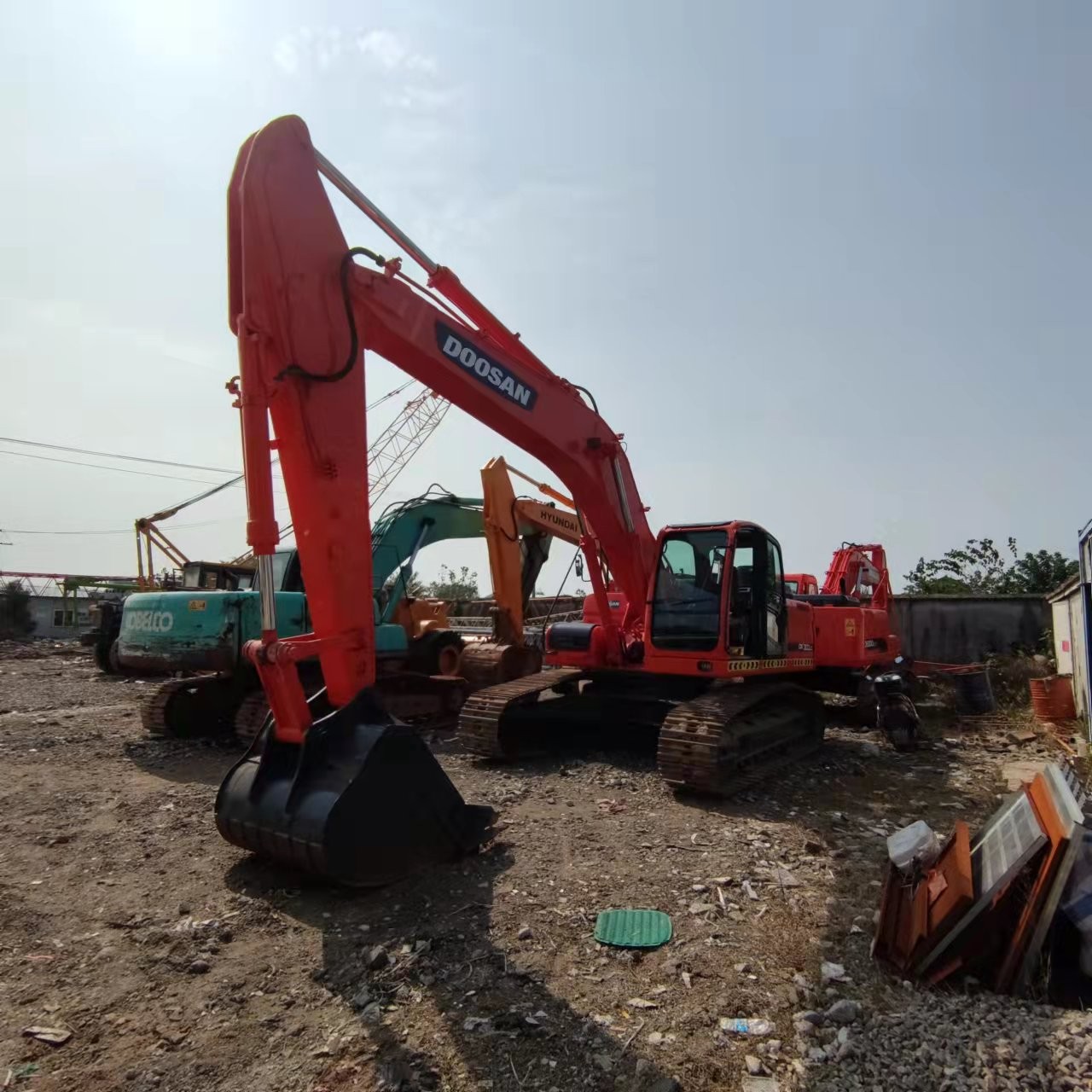

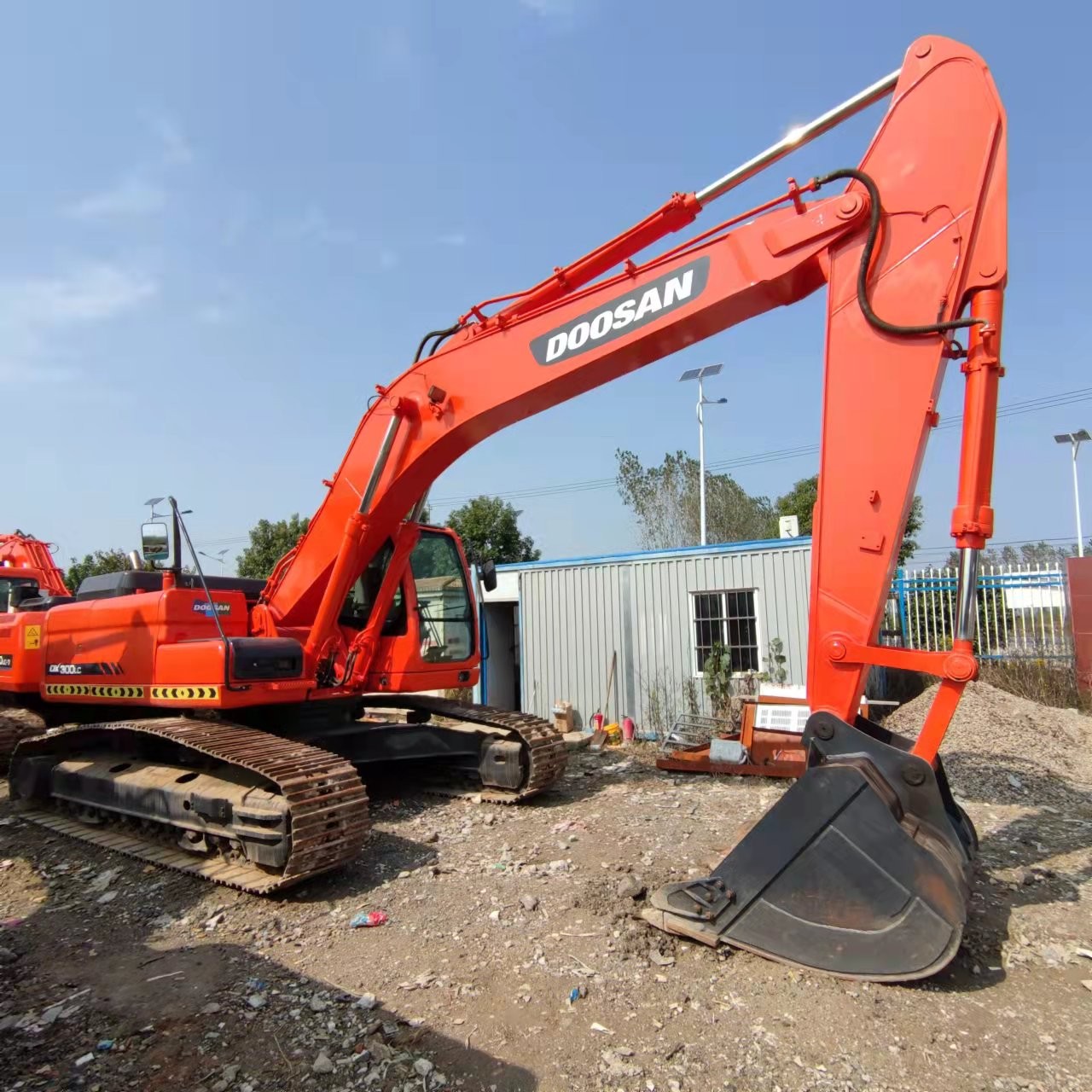

Doosan DX300LC

General Specifications:

· Engine Power: 221 kW (296 hp) @ 1,800 rpm

· Operating Weight: 29,400 kg (64,900 lb)

· Bucket Capacity: 1.2 m³ to 1.4 m³ (depending on configuration)

· Fuel Tank Capacity: 400 L (105.7 gal)

· Cooling System Capacity: 39.4 L (10.4 gal)

· Hydraulic System Capacity: 285 L (75.3 gal)

· Swing Mechanism Capacity: 75 L (19.8 gal)

Dimensions:

· Transport Length: 10,620 mm (418 in)

· Transport Width: 3,200 mm (126 in)

· Transport Height: 3,460 mm (136 in)

· Track Width: 600 mm (24 in)

· Track Length: 4,700 mm (185 in)

· Undercarriage Length: 5,370 mm (211 in)

· Ground Clearance: 450 mm (17.7 in)

Performance:

· Maximum Digging Depth: 7,000 mm (276 in)

· Maximum Reach at Ground Level: 10,590 mm (417 in)

· Maximum Digging Radius: 10,530 mm (414 in)

· Bucket Digging Force: 198 kN (44,500 lbf)

· Arm Digging Force: 169 kN (38,000 lbf)

· Max Lifting Capacity: 9,190 kg (20,280 lb) (at 3.5 m radius)

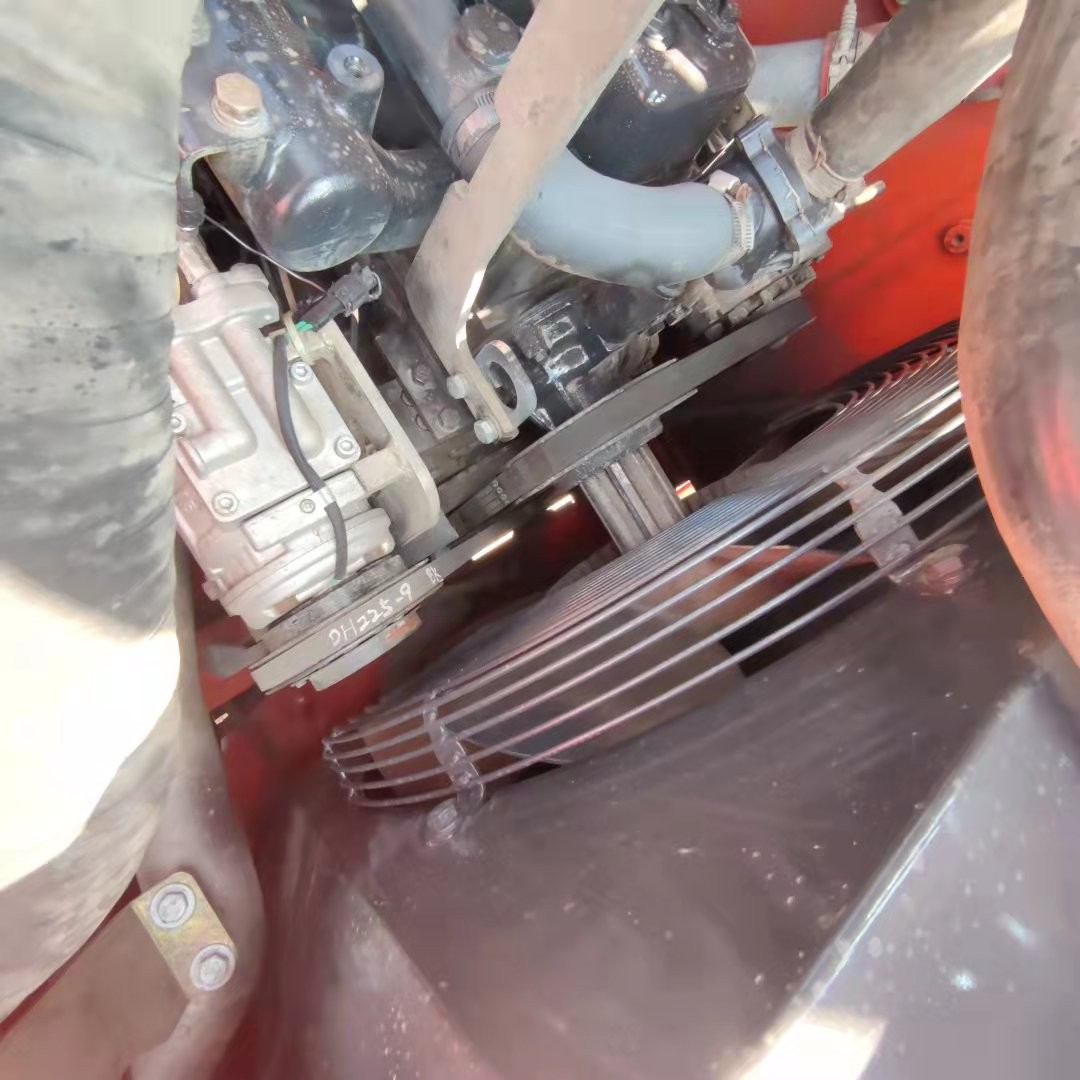

Engine:

· Engine Model: Doosan DL06V

· Engine Type: Turbocharged, intercooled, 6-cylinder

· Displacement: 7.6 L (464 in³)

· Fuel Type: Diesel

· Emissions Standard: Tier 3 / Stage IIIA (varies by region)

· Cooling System: Large capacity to ensure long-term performance in tough conditions

Hydraulics:

· Pump Type: Variable displacement piston pump

· Pump Flow: 528 L/min (139.5 gpm)

· System Pressure: 34.3 MPa (4,974 psi)

· Hydraulic System Type: High-efficiency, electro-hydraulic system for improved fuel efficiency and operational performance

· Auxiliary Hydraulic Flow: Available for attachment operation (depends on configuration)

Operator Station:

· Cab Type: ROPS (Roll-Over Protection System) and FOPS (Falling Object Protection System)

· Climate Control: Air conditioning and heating

· Seating: Ergonomic, adjustable seat with suspension for operator comfort

· Joystick Controls: For precise control of excavator functions

· Display: LCD monitor that shows machine diagnostics, fuel consumption, maintenance alerts, and working conditions

· Advanced Audio System: Optional radio for improved comfort during long shifts

Performance Features:

· Doosan's Smart Power Control (SPC): Optimizes fuel efficiency while maintaining high productivity

· Auto Idle: Automatically reduces engine speed when the machine is not in use to save fuel

· Powerful Hydraulic Performance: Provides superior digging and lifting capability, especially in demanding tasks like heavy lifting and trenching

· Eco Mode: Maximizes fuel efficiency by adjusting engine power depending on load and working conditions

· Boom & Arm Design: Reinforced for extended durability in tough applications

Undercarriage:

· Track Type: Heavy-duty, triple-grouser tracks

· Undercarriage Design: High-strength components for better durability and long life

· Track Frame: Welded and reinforced for greater stability and performance in harsh environments

Safety Features:

· Standard Rearview Camera: Improves visibility around the machine

· Overload Warning System: Alerts the operator if the machine is at risk of overloading

· Anti-theft System: Optional to help prevent unauthorized machine use

· Operator Presence Sensing: Ensures that the operator is in the correct operating position before starting the machine

Miscellaneous:

· Automatic Greasing System: Reduces maintenance time and extends the life of the machine components

· Easy Access for Maintenance: Large, easy-to-open side panels for simple access to daily maintenance points

· Low Noise Emission: Meets noise level regulations for a quieter operation in urban environments

· Wide Range of Attachments: Can be fitted with various attachments such as breakers, buckets, and grapples for enhanced versatility
