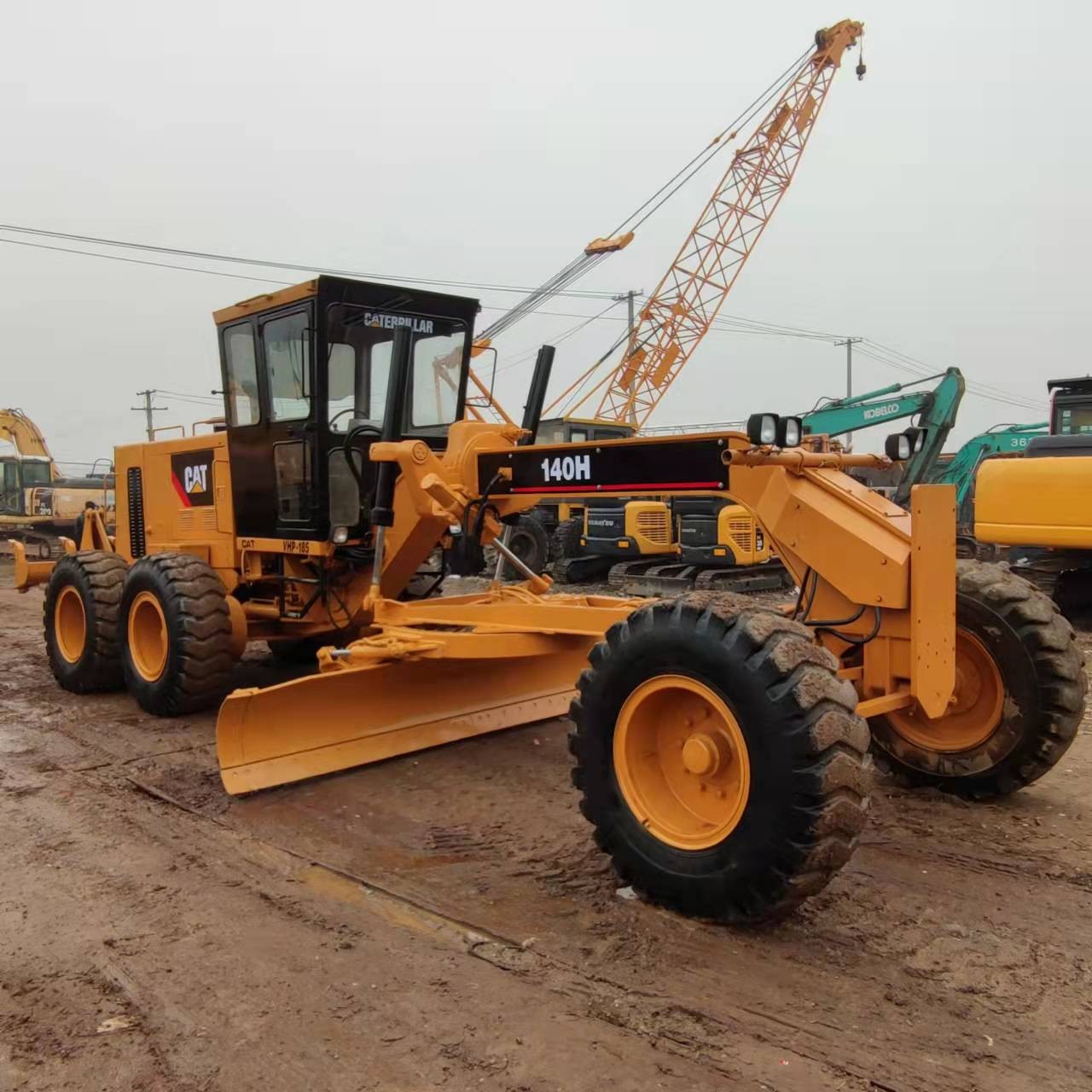

Caterpillar 140H

General Specifications:

· Engine Power: 142 kW (190 hp) @ 2,000 rpm

· Operating Weight: 15,400 kg (33,950 lb)

· Blade Width: 3.7 m (12 ft) standard

· Max Blade Lift Height: 460 mm (18 in)

· Max Blade Depth: 460 mm (18 in)

· Ground Clearance: 420 mm (16.5 in)

· Fuel Tank Capacity: 300 L (79.3 gal)

· Cooling System Capacity: 31.5 L (8.3 gal)

· Transmission Type: Powershift, 8 forward gears and 6 reverse gears

Dimensions:

· Length: 9,370 mm (369 in)

· Width (blade tilted): 3,950 mm (155 in)

· Height (cab): 3,320 mm (130 in)

· Wheelbase: 5,270 mm (207 in)

· Turning Radius (Blade to Outside): 7.1 m (23.3 ft)

· Tire Size: 17.5R25 (depending on configuration)

Performance:

· Maximum Speed: 37.6 km/h (23.4 mph)

· Drawbar Pull: 124 kN (27,900 lbf)

· Max Blade Angle: 90° (can be adjusted for different grading angles)

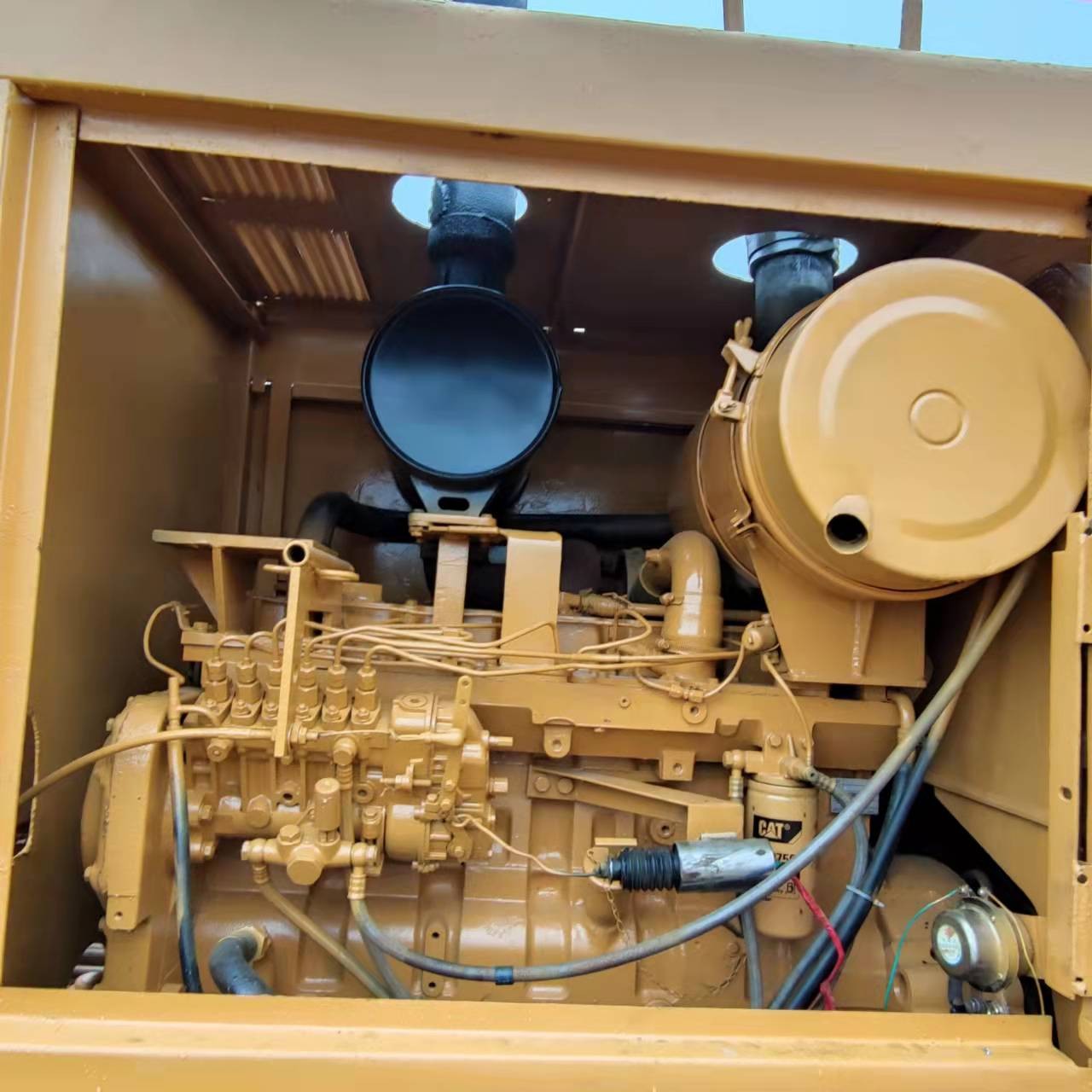

Engine:

· Engine Model: Cat 3306

· Engine Type: Turbocharged, 6-cylinder, inline

· Displacement: 8.7 L (531 in³)

· Fuel Type: Diesel

· Emissions Standard: Tier 2 / Stage II (varies by region)

· Cooling System: Dual-element air filter, fan drive for better heat dissipation

Hydraulics:

· Pump Flow: 151 L/min (39.9 gpm)

· Hydraulic Pressure: 23.5 MPa (3,408 psi)

· Hydraulic Cylinders: Fully integrated for enhanced lifting, lowering, and tilting operations

· Auxiliary Hydraulic Flow: Available for various attachments such as scarifiers or other grading equipment

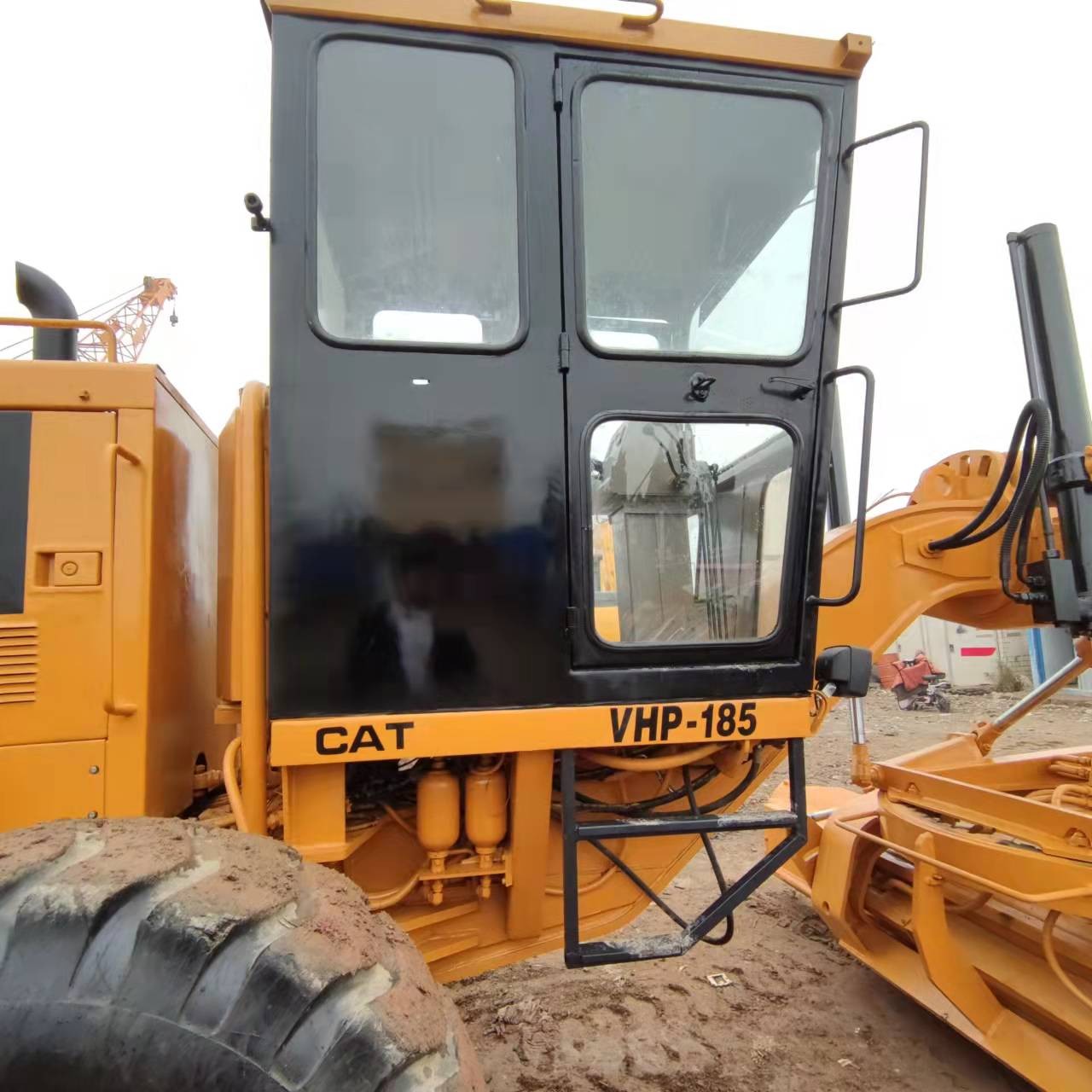

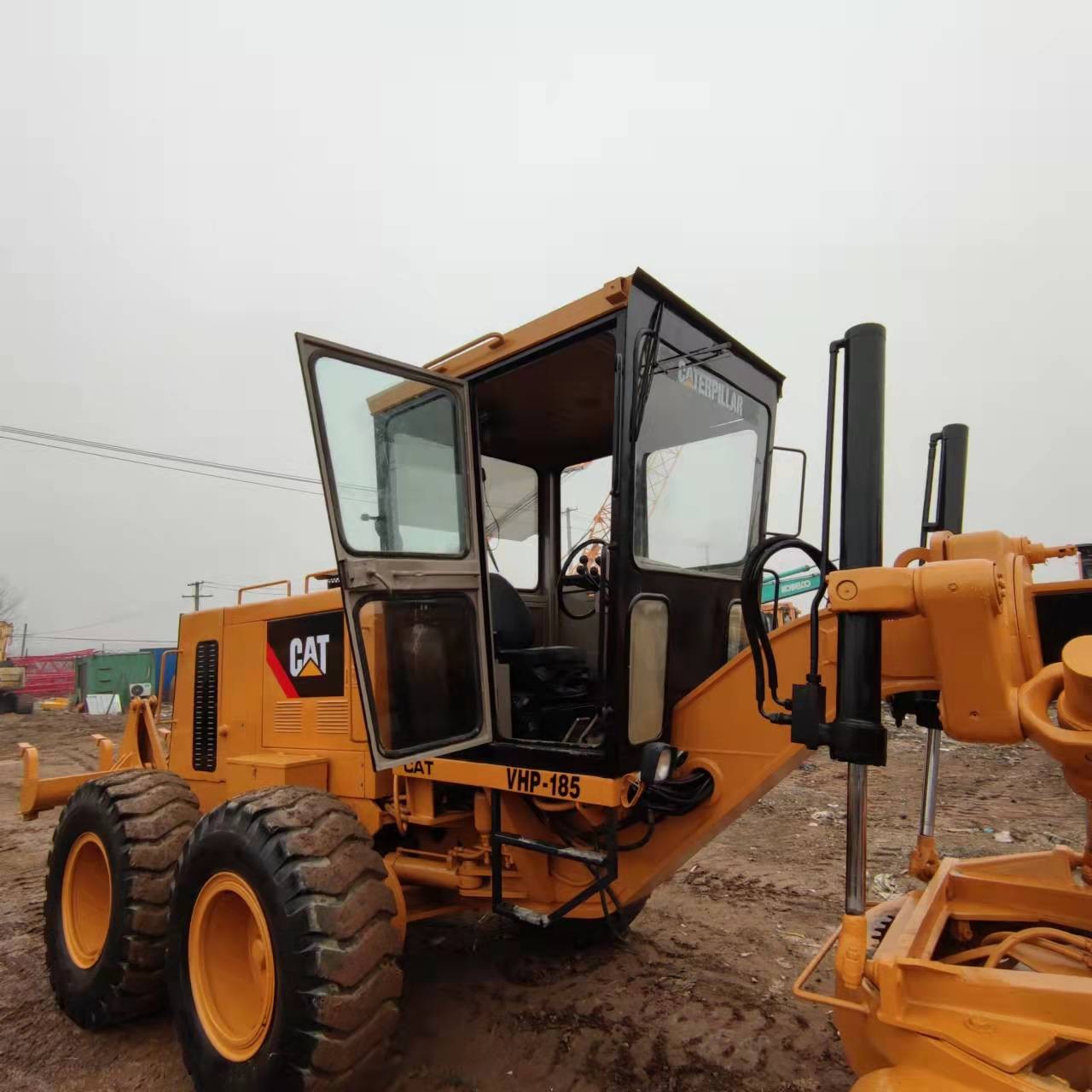

Operator Station:

· Cab Type: ROPS (Roll-Over Protection System) and FOPS (Falling Object Protection System)

· Seating: Adjustable, high-back seat with suspension for comfort

· Joystick Controls: Precision controls for blade, circle, and frame

· Instrument Panel: Digital readout for fuel economy, engine diagnostics, and other operational information

· Climate Control: Air conditioning, heating for comfortable operation in all weather conditions

Performance Features:

· Cat C9 Engine Control: Provides improved fuel economy and performance

· Powershift Transmission: 8 forward speeds and 6 reverse speeds for greater control on various surfaces

· Blade Lift and Tilt Control: Precise control for better accuracy in grading

· Power Steering: Electro-hydraulic system for easier maneuverability and reduced operator fatigue

· Auto-Shift and Auto-Idle: These systems ensure the motor grader operates efficiently, saving fuel and improving overall performance

Safety Features:

· Rearview Camera: Available for improved visibility when reversing or maneuvering

· Stability Control: Designed for safe operation in different grades and terrains

· Operator Protection: Reinforced cab design and ROPS/FOPS to protect the operator in case of rollovers or falling objects

· Emergency Stop System: Allows for rapid disengagement of the transmission in an emergency

Undercarriage:

· Rear Axle: Equipped with oscillation for smoother operation over uneven terrain

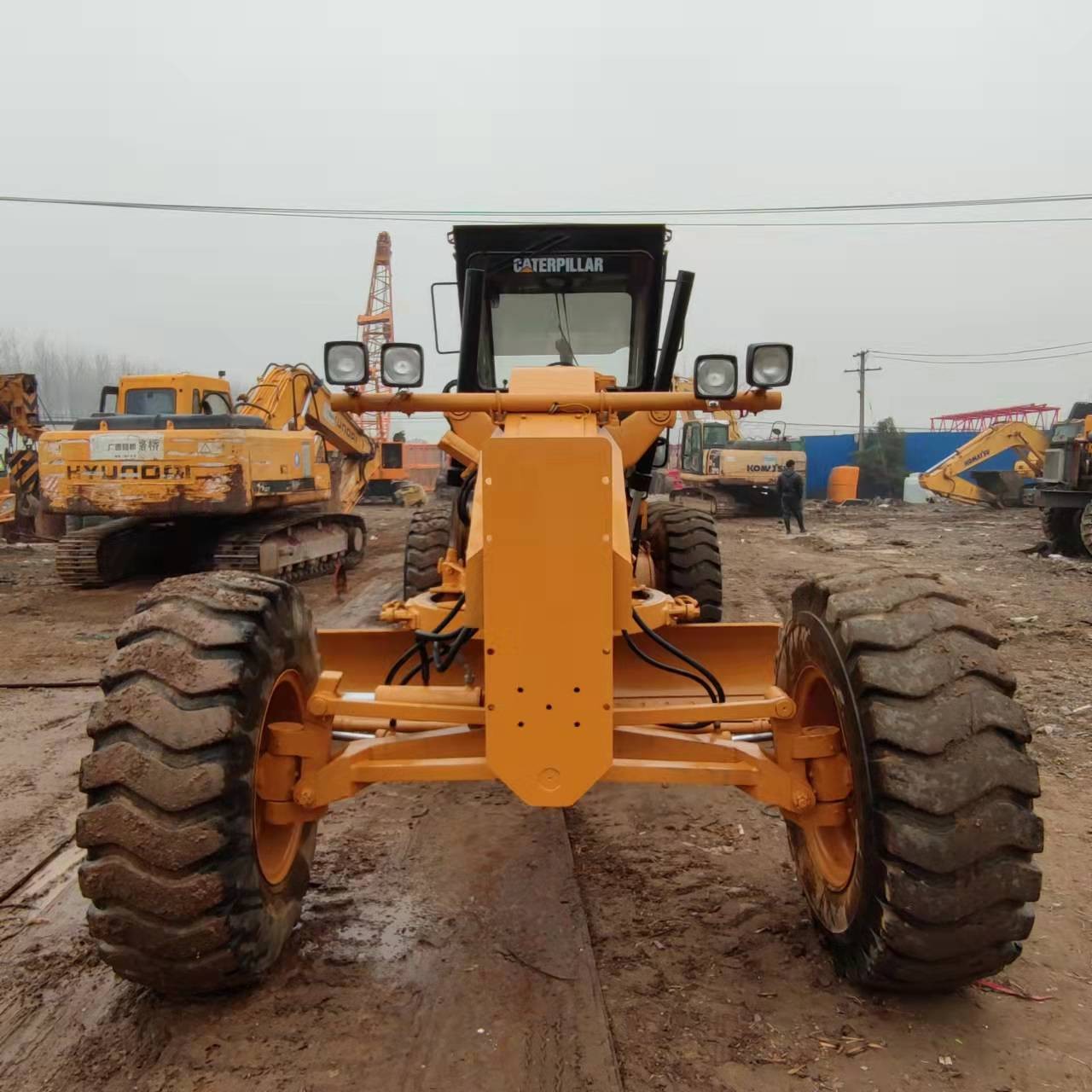

· Front Axle: Fully articulated for better maneuverability

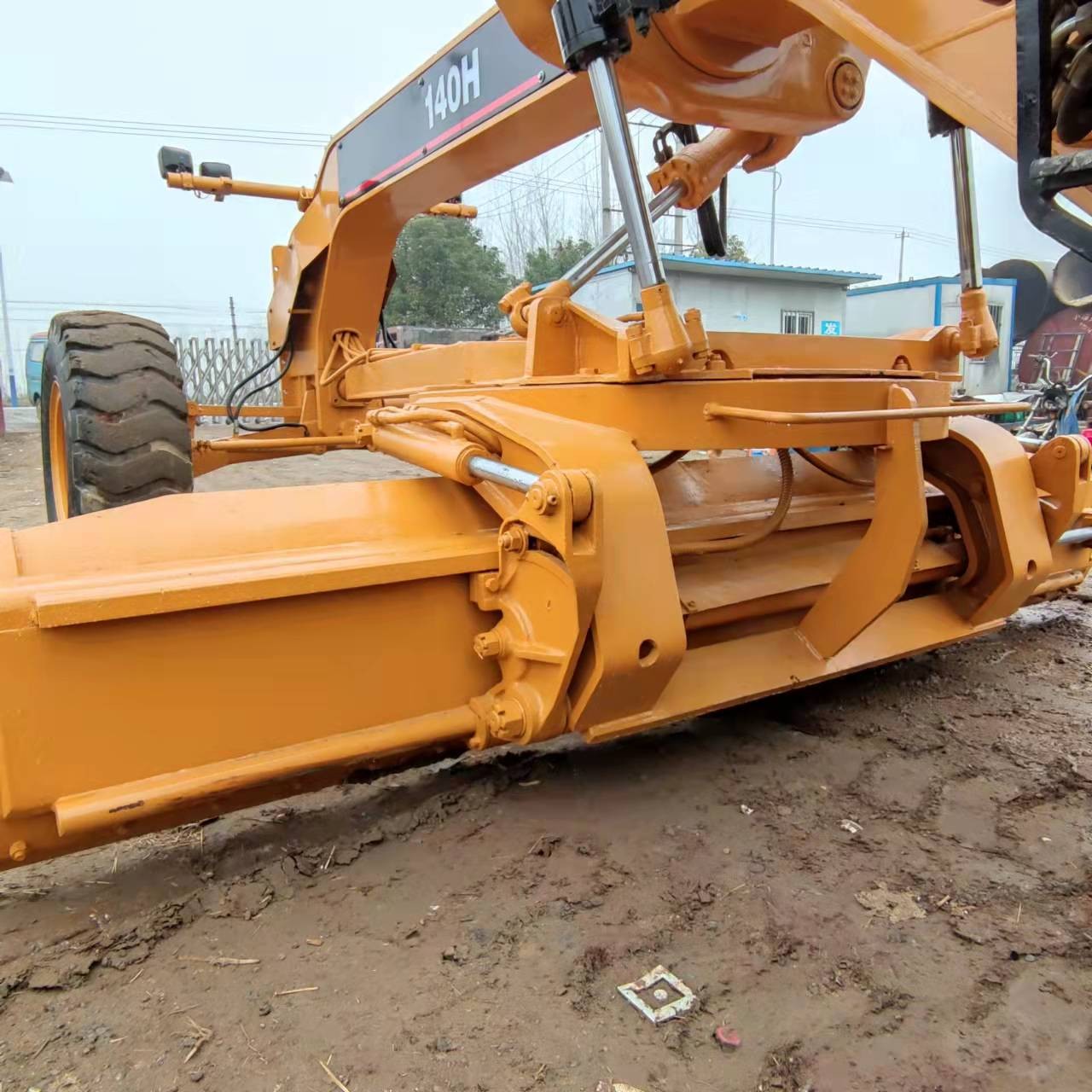

· Blade: Moldboard and side-shift are adjustable for different applications, allowing greater flexibility

Miscellaneous:

· Automatic Lubrication System: Reduces maintenance time and ensures components are properly lubricated.

· Easy Maintenance: The 140H features easy access to maintenance points, minimizing downtime.

· Long Service Intervals: Designed to maximize uptime and minimize operational costs.
