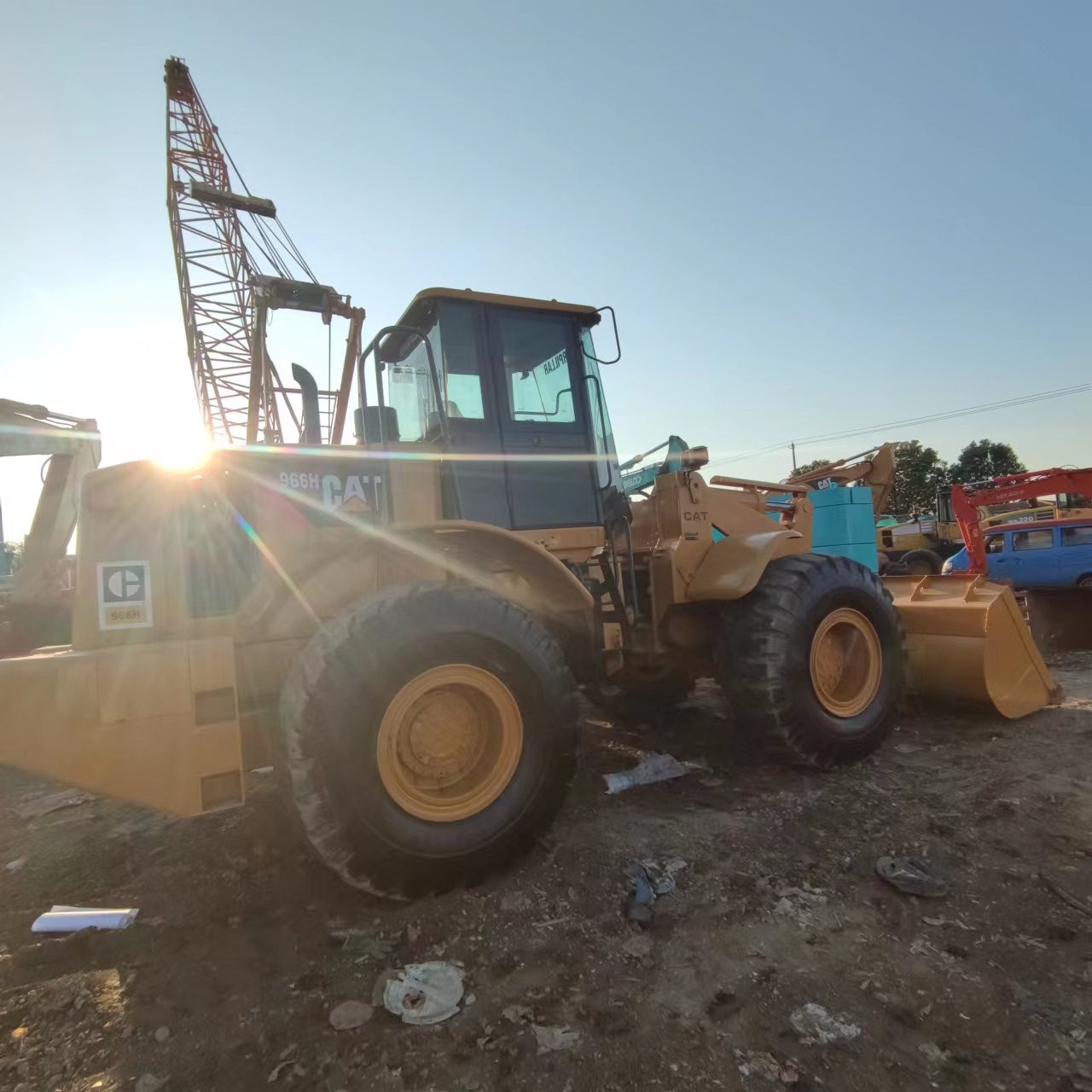

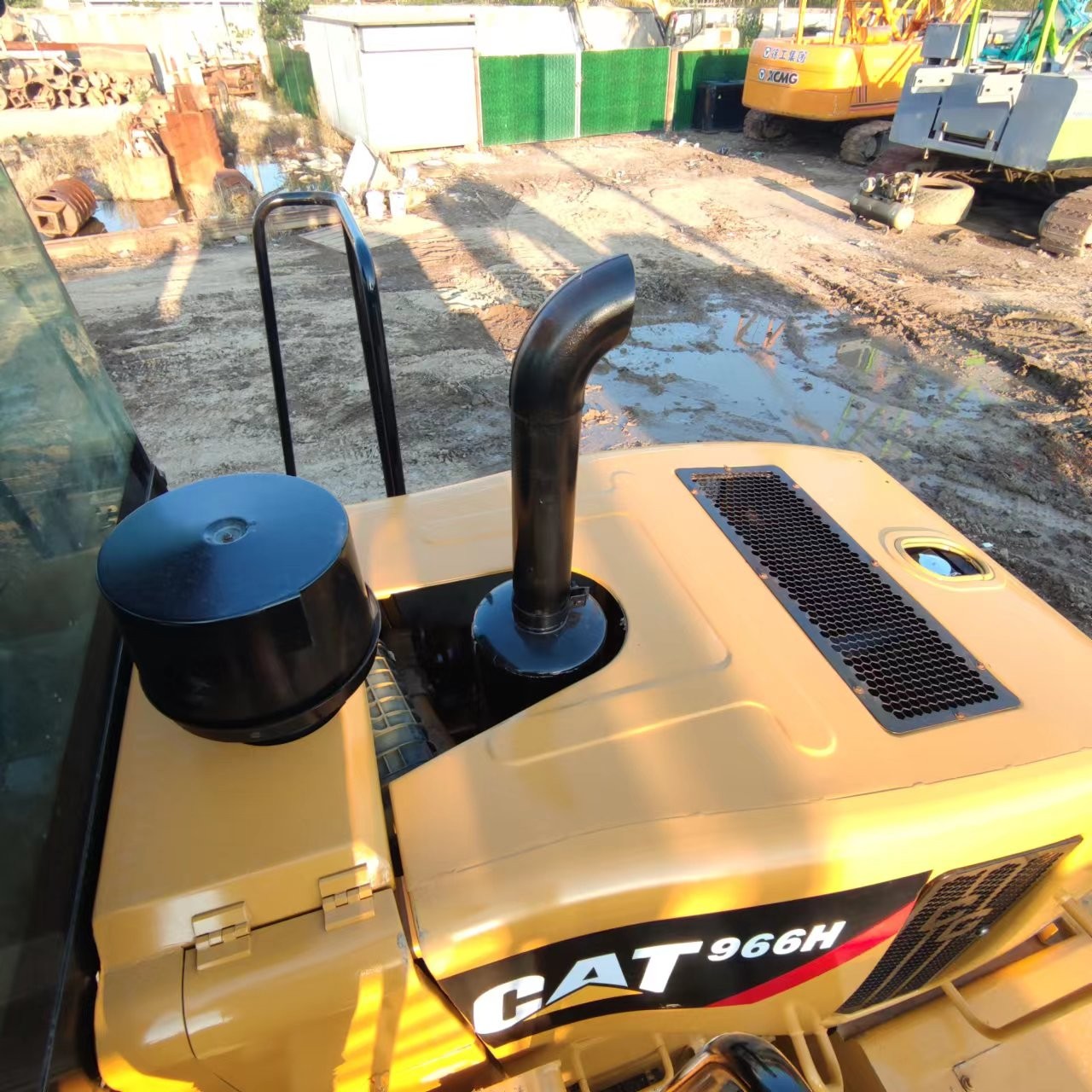

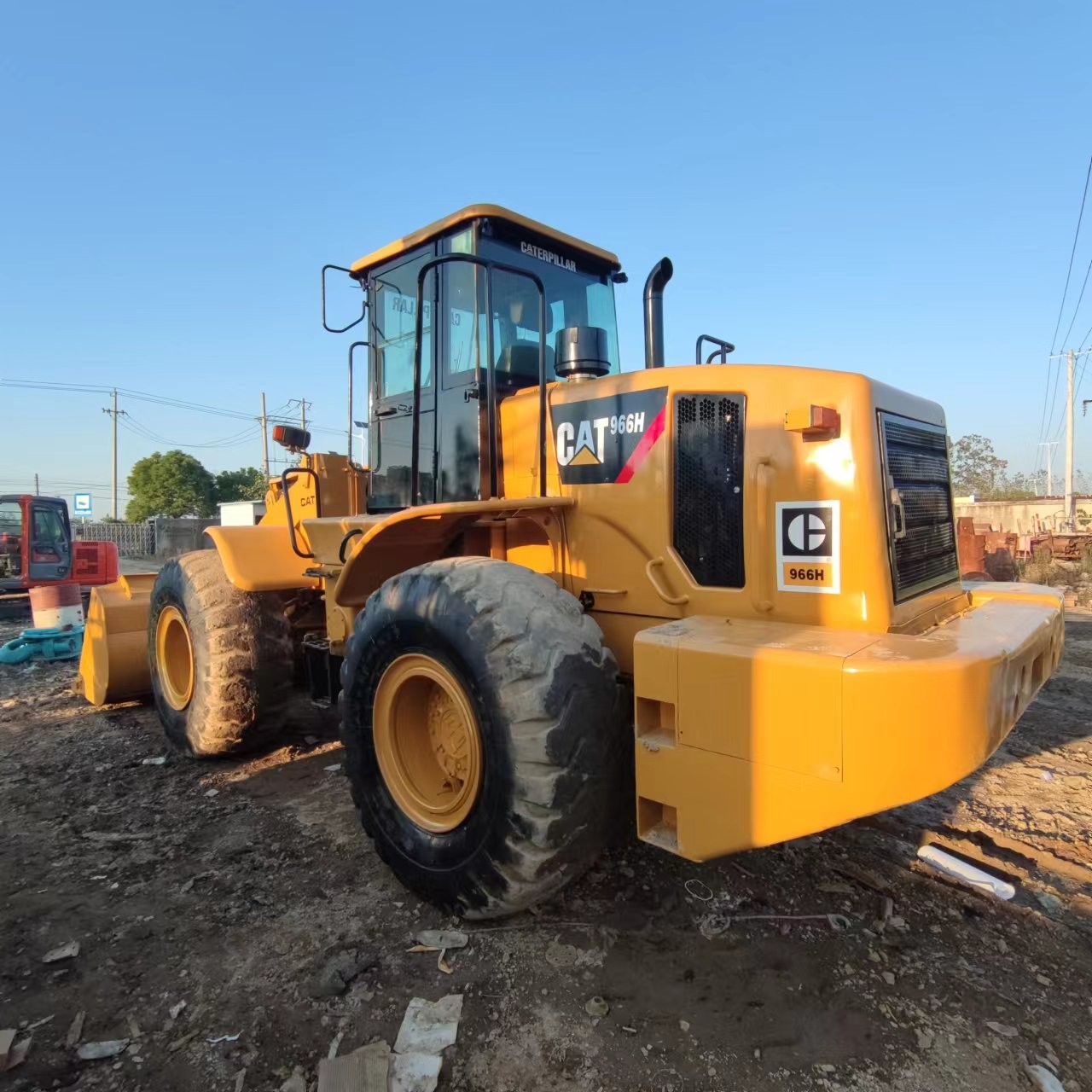

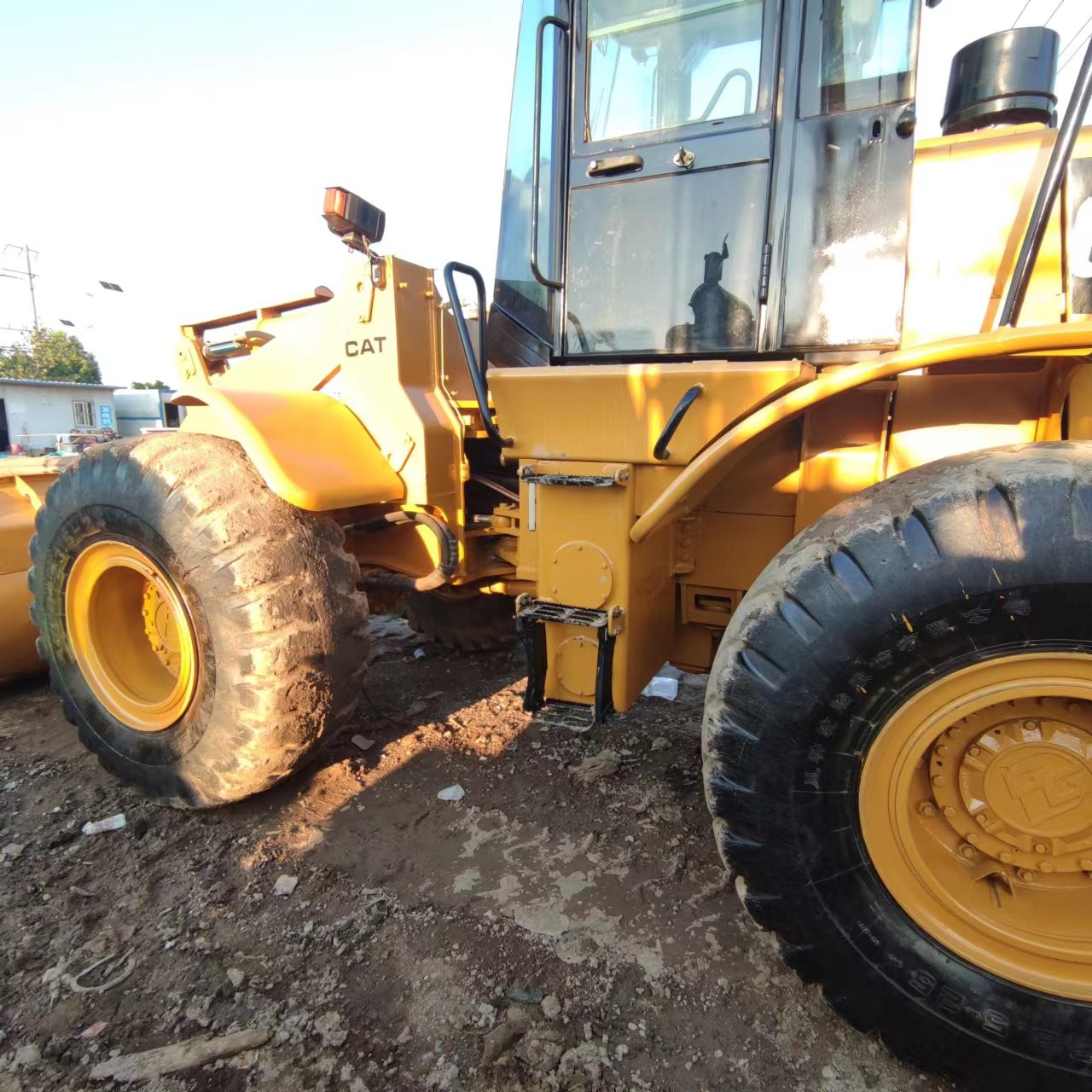

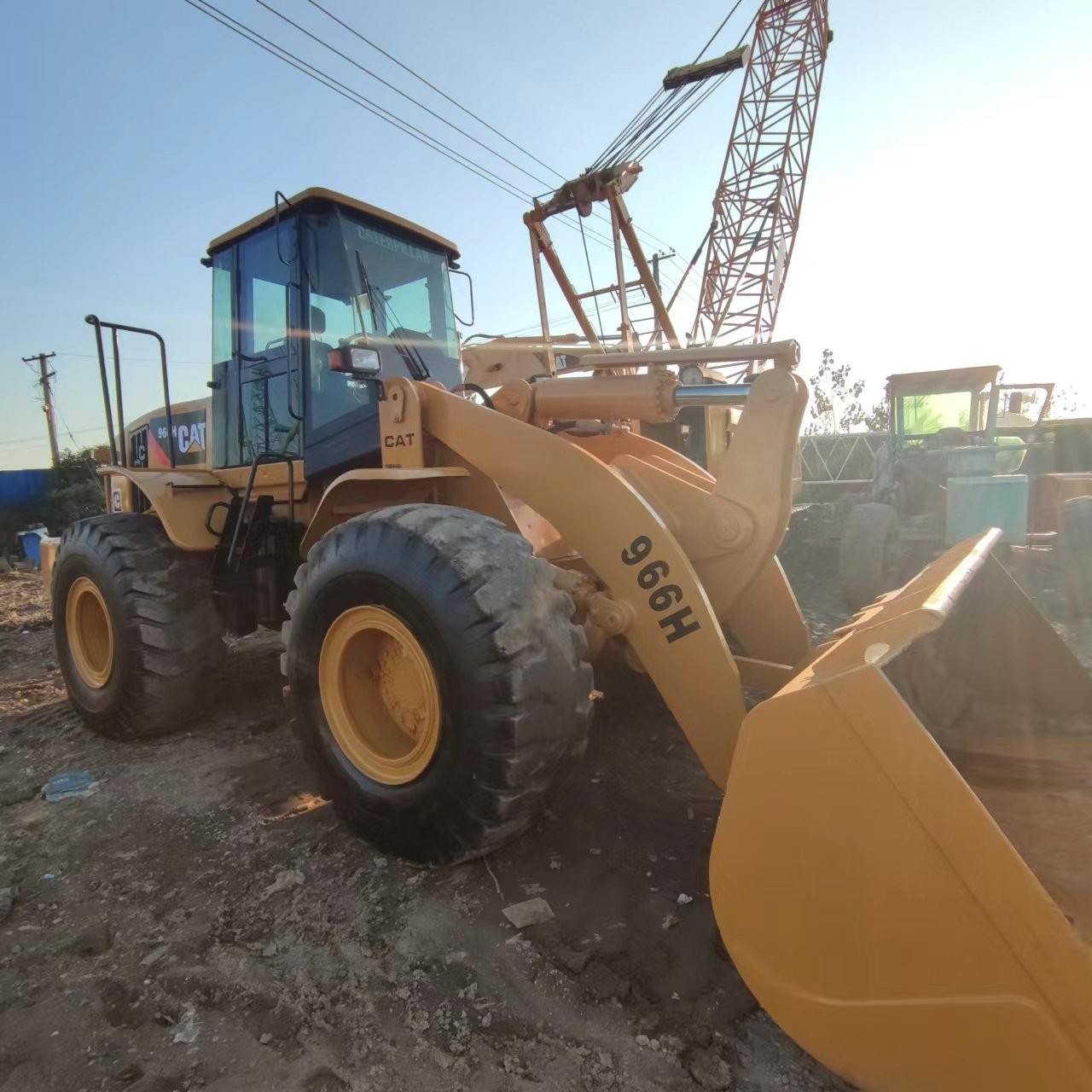

Caterpillar 966H

General Specifications:

· Engine Power: 198 kW (265 hp) @ 1,800 rpm

· Operating Weight: 20,250 kg (44,600 lb)

· Bucket Capacity: 2.5 m³ to 4.2 m³ (depending on configuration and attachment)

· Fuel Tank Capacity: 395 L (104.4 gal)

· Cooling System Capacity: 40 L (10.6 gal)

· Hydraulic System Capacity: 320 L (84.5 gal)

· Transmission Type: Powershift, 4-speed forward and 3-speed reverse

Dimensions:

· Length (with bucket on ground): 8,091 mm (318 in)

· Width (over tires): 2,940 mm (116 in)

· Height (top of cab): 3,650 mm (144 in)

· Wheelbase: 3,230 mm (127 in)

· Ground Clearance: 370 mm (14.6 in)

· Tire Size: 20.5-25 (depending on configuration)

Performance:

· Maximum Travel Speed: 38.6 km/h (24 mph)

· Rated Load Capacity: 5,000 kg (11,000 lb)

· Breakout Force: 159 kN (35,700 lbf)

· Bucket Dump Clearance: 2,835 mm (111.6 in)

· Bucket Dump Reach: 1,150 mm (45.3 in)

· Max Dump Height: 3,300 mm (130 in)

Engine:

· Engine Model: Cat C9 ACERT

· Displacement: 8.8 L (536 in³)

· Fuel Type: Diesel

· Emissions Standard: Tier 3 / Stage IIIA (varies by region)

· Turbocharged and Aftercooled: Yes

· Cooling System: High-efficiency cooling package to optimize engine performance in high-load situations

Hydraulics:

· Pump Flow: 345 L/min (91 gpm)

· Hydraulic Pressure: 26.5 MPa (3,847 psi)

· Lift Cylinder Force: 157 kN (35,300 lbf)

· Tilt Cylinder Force: 96 kN (21,600 lbf)

Operator Station:

· Cab Type: ROPS (Roll-Over Protection System) and FOPS (Falling Object Protection System)

· Seating: Air-suspended seat with adjustable armrests for operator comfort

· Joystick Controls: Ergonomic joysticks for precise control of the loader’s functions

· Instrument Panel: Digital display with easy-to-read gauges for fuel, temperature, and machine diagnostics

· Climate Control: Air conditioning and heating to ensure operator comfort in varying weather conditions

· Visibility: Large windows and optional rearview camera for better all-around visibility

Performance Features:

· Auto Power Shift: The transmission automatically selects the optimal gear for efficiency and performance.

· Cat OptiShift Technology: Reduces fuel consumption and improves productivity by combining the powershift transmission with a lock-up clutch.

· Power Train Efficiency: Advanced control system and hydraulics for fuel-efficient operations.

· Advanced Hydraulic System: Helps achieve greater lifting and bucket performance while reducing fuel consumption.

· Load Sensing Hydraulics: Adjusts hydraulic flow to meet demands based on load, increasing efficiency and minimizing energy waste.

Undercarriage:

· Axles: Fully sealed, heavy-duty axles with increased durability for rough applications

· Tires: 20.5-25, radial or bias ply, depending on application requirements

· Frame: Strong, durable welded steel frame with reinforced areas to reduce stress and enhance overall machine lifespan

Safety Features:

· Anti-Theft System: Optional system to secure the machine from unauthorized use

· Rearview Camera: Enhances visibility while reversing and maneuvering the loader in tight spaces

· Stability Control: Offers a stable working platform even when operating in rough or uneven terrain

· Rollover Protection: ROPS and FOPS cab design to protect the operator in the event of an accident

Miscellaneous:

· Serviceability: Easy access to maintenance points with wide-opening side panels for quick daily checks

· Automatic Lubrication System: Optional system to ensure proper lubrication of components and reduce maintenance time

· Long Life Components: The 966H is designed for high durability with heavy-duty components to reduce the need for repairs and maximize uptime.
