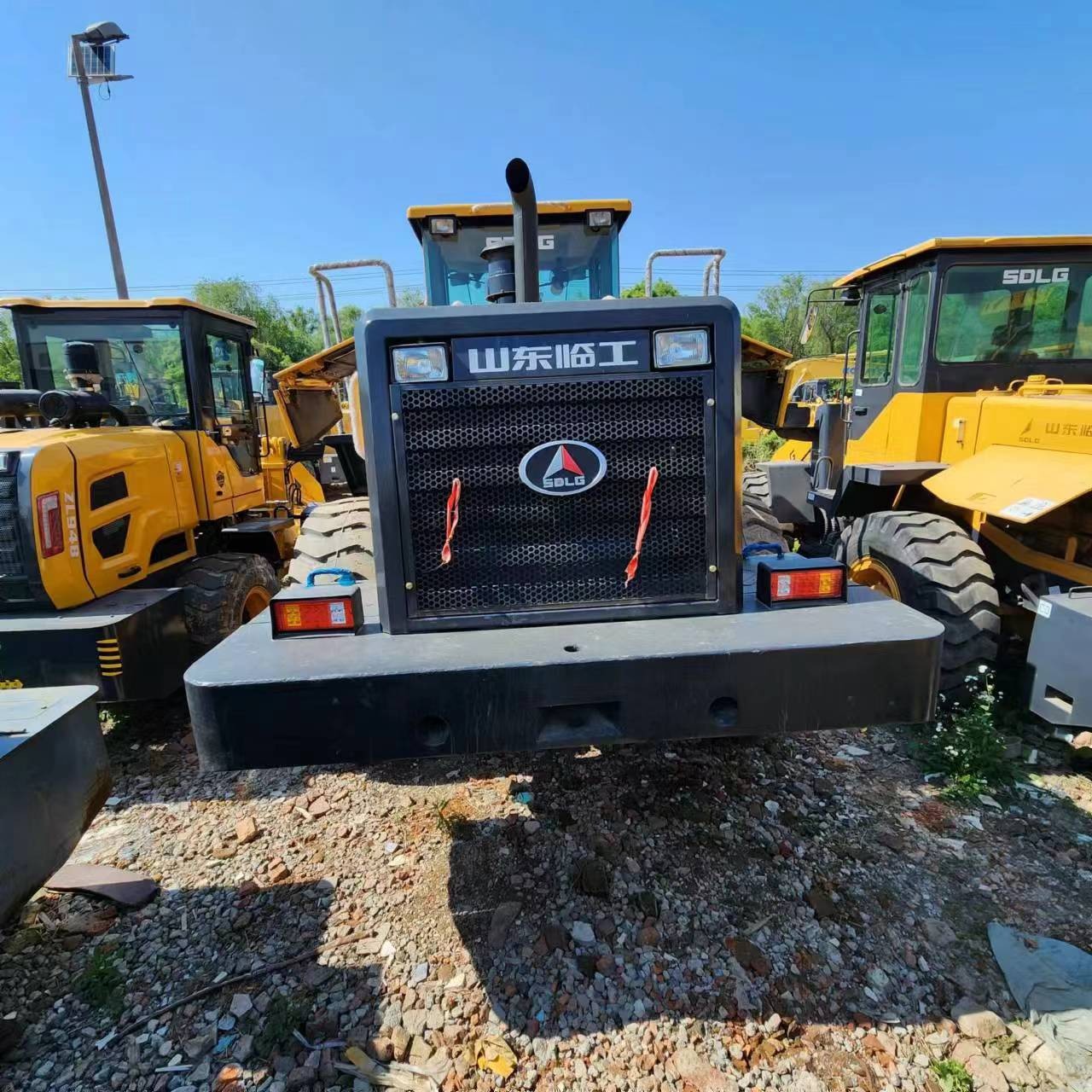

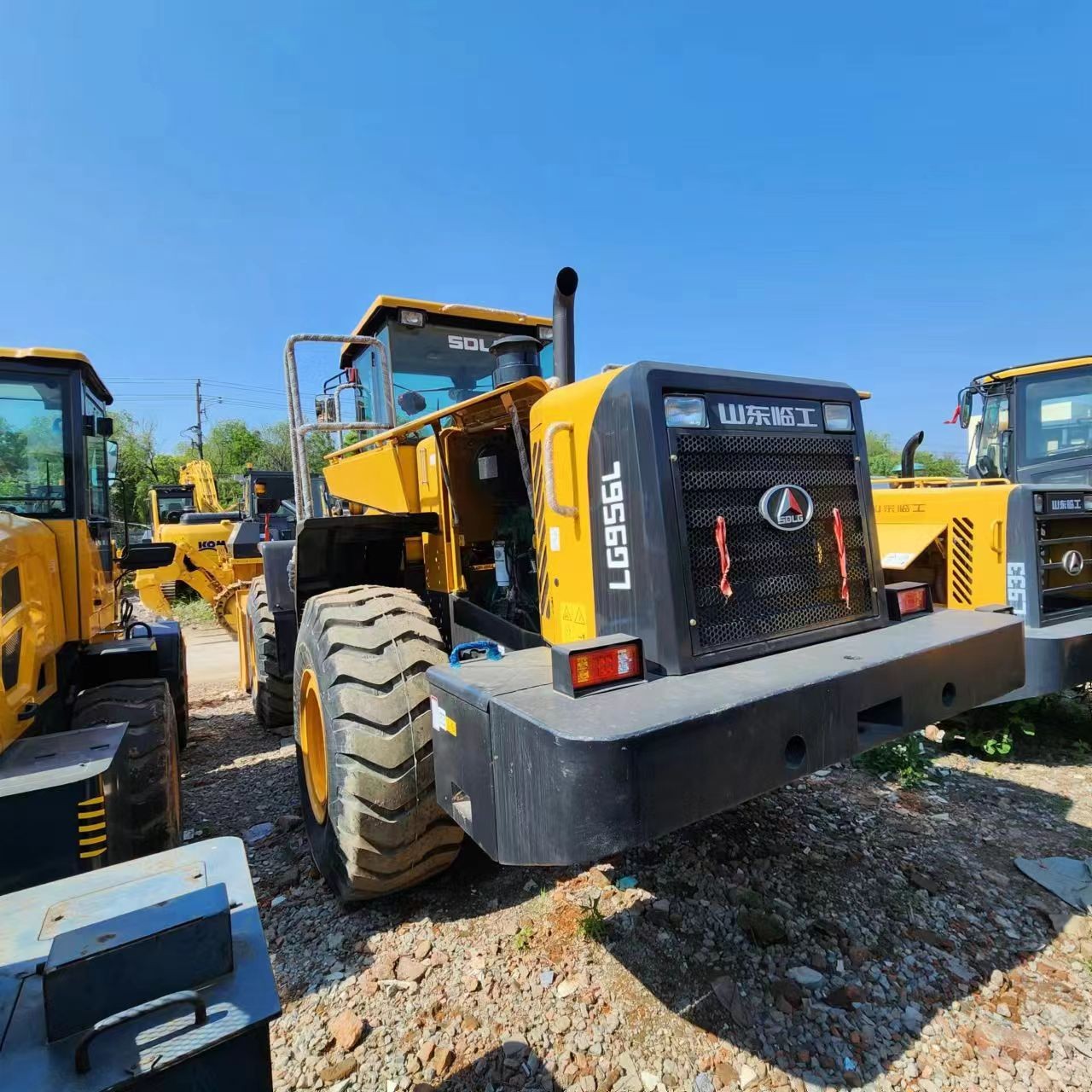

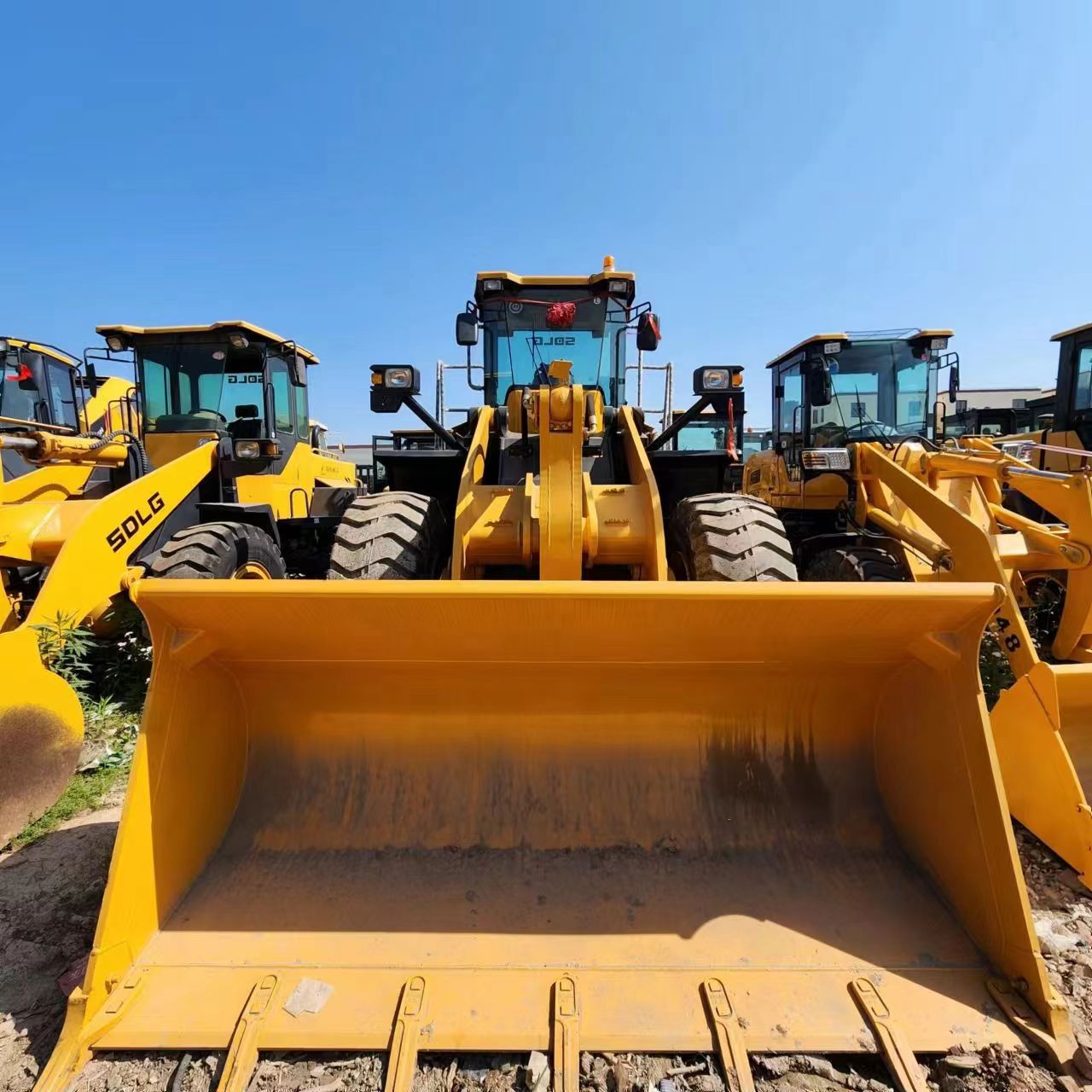

SDLG 956L

General Specifications:

· Engine Power: 162 kW (217 hp) @ 2,200 rpm

· Operating Weight: 17,000 kg (37,480 lb)

· Bucket Capacity: 3.0 m³ (3.9 yd³) to 3.5 m³ (4.6 yd³), depending on configuration

· Max Dump Height: 3,330 mm (131.3 in)

· Max Reach at Full Lift: 1,300 mm (51.2 in)

· Fuel Tank Capacity: 300 L (79.3 gal)

· Hydraulic System Capacity: 190 L (50.2 gal)

· Cooling System Capacity: 29 L (7.7 gal)

Dimensions:

· Overall Length: 7,680 mm (302.4 in)

· Overall Width: 2,590 mm (101.9 in)

· Overall Height (top of cab): 3,320 mm (130.7 in)

· Wheelbase: 3,100 mm (122.0 in)

· Track Width: 2,200 mm (86.6 in)

· Ground Clearance: 400 mm (15.7 in)

Performance:

· Maximum Travel Speed: 38 km/h (23.6 mph)

· Max Breakout Force: 160 kN (35,900 lbf)

· Max Traction Force: 135 kN (30,300 lbf)

· Rated Load: 5,500 kg (12,125 lb)

· Max Lifting Height: 3,300 mm (129.9 in)

· Max Dumping Height: 3,330 mm (131.3 in)

· Max Reach: 1,300 mm (51.2 in)

Engine:

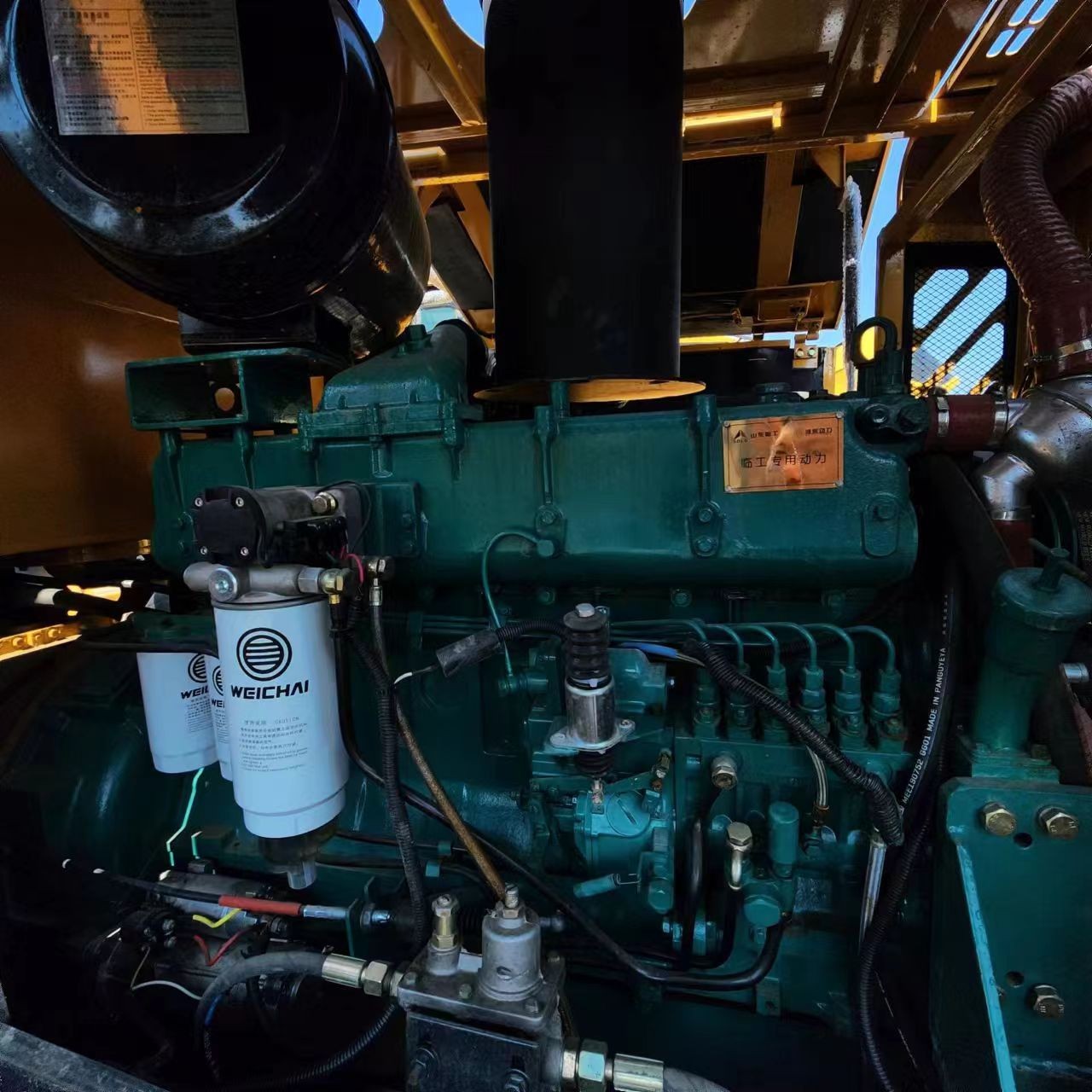

· Engine Model: Weichai WP10G180E32

· Engine Type: 6-cylinder, turbocharged, intercooled diesel engine

· Displacement: 9.726 L (594.5 in³)

· Fuel Type: Diesel

· Cooling System: High-efficiency radiator for optimal performance in extreme environments

· Emissions Standard: Meets Tier 3 / Stage IIIA (varies by region)

· Maximum Torque: 1,100 Nm (811.2 lb-ft) @ 1,500 rpm

Hydraulics:

· Hydraulic System Type: Load-sensing, variable-displacement piston pump

· Pump Flow: 200 L/min (52.8 gpm)

· Hydraulic Pressure: 20 MPa (2,900 psi)

· Lift Cylinder Force: 120 kN (26,900 lbf)

· Tilt Cylinder Force: 80 kN (18,000 lbf)

Transmission:

· Transmission Type: Fully automatic, planetary powershift transmission

· Gears: 3 forward and 3 reverse

· Max Travel Speed: 38 km/h (23.6 mph)

· Torque Converter: High-efficiency torque converter for smooth operation

Operator Station:

· Cab Type: ROPS (Roll-Over Protection System) and FOPS (Falling Object Protection System) certified

· Seating: Air-suspended, adjustable operator seat for comfort during extended working hours

· Joystick Controls: Ergonomically designed joystick controls for precise operation of the loader

· Climate Control: Air conditioning and heating to ensure operator comfort in all conditions

· Visibility: Large glass windows and optional rearview camera for better visibility and safety

· Display: Digital instrument panel for easy monitoring of engine performance, fuel levels, and diagnostics

Performance Features:

· Load-Sensing Hydraulic System: This advanced hydraulic system ensures smooth operation and better efficiency in material handling tasks.

· Fuel Efficiency: The SDLG 956L is designed for low fuel consumption while maintaining high performance, making it ideal for long working hours.

· Enhanced Traction: The loader features an optimized axle and drive system to deliver high traction power in demanding conditions.

· Quick Attachments: The 956L is compatible with a wide range of attachments, such as forks, rippers, and snowplows, for greater versatility.

· Heavy-Duty Axles: Designed to withstand tough working conditions, these axles ensure reliable performance and durability over time.

· Auto-idle: The auto-idle system reduces engine speed when the loader is not in use, saving fuel and reducing noise.

Undercarriage:

· Track Type: Full-rubber or semi-rubber tracks for durability in harsh terrains

· Axles: Reinforced, heavy-duty axles designed for long life and heavy lifting

· Tires: High-traction tires that ensure stability and improve grip on various surfaces, including slippery or uneven ground

· Suspension: Robust suspension system that provides stability when operating on rough and uneven surfaces

Safety Features:

· ROPS/FOPS Certified: The cab is certified for ROPS and FOPS safety standards, ensuring operator protection in the event of a rollover or falling objects.

· Stability Control: Designed for stability in tough working conditions and during lifting operations.

· Lighting System: Equipped with high-visibility LED lighting for safe operation during nighttime or in low-light conditions.

· Back-up Alarm: An audible alarm system to warn surrounding personnel when the loader is reversing.

· Emergency Shutdown: An emergency engine shutdown system for added safety during critical situations.

Miscellaneous:

· Easy Maintenance: The SDLG 956L is designed for easy maintenance, with centralized grease points and accessible engine components for reduced downtime.

· Durability: Built to handle tough workloads, the 956L uses high-quality materials to ensure long-term performance with minimal wear and tear.

· Comfort: The spacious and comfortable cab, along with air conditioning, helps reduce operator fatigue and improves productivity.

· Fuel Economy: Designed to deliver excellent fuel efficiency, making it more cost-effective over long operating hours.

Applications:

The SDLG 956L is ideal for:

· Construction: Earthmoving, grading, and loading tasks at construction sites.

· Mining: Handling materials in mining operations, including loading and transporting mined goods.

· Quarrying: Handling large quantities of gravel, sand, and other materials in quarries.

· Agriculture: Moving bulk materials and soil for agricultural projects.

· Industrial Applications: Transporting and loading materials in industrial plants and factories.
