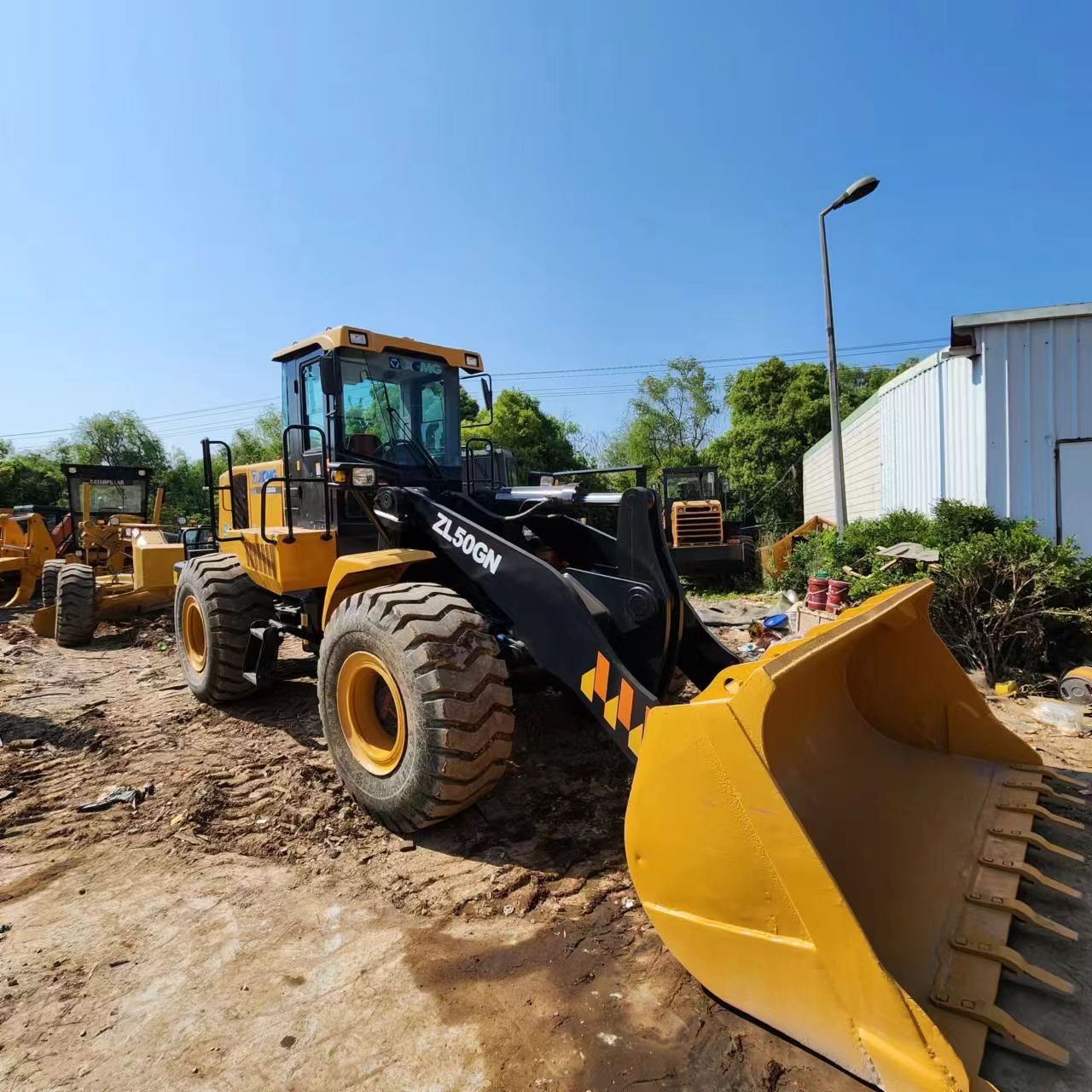

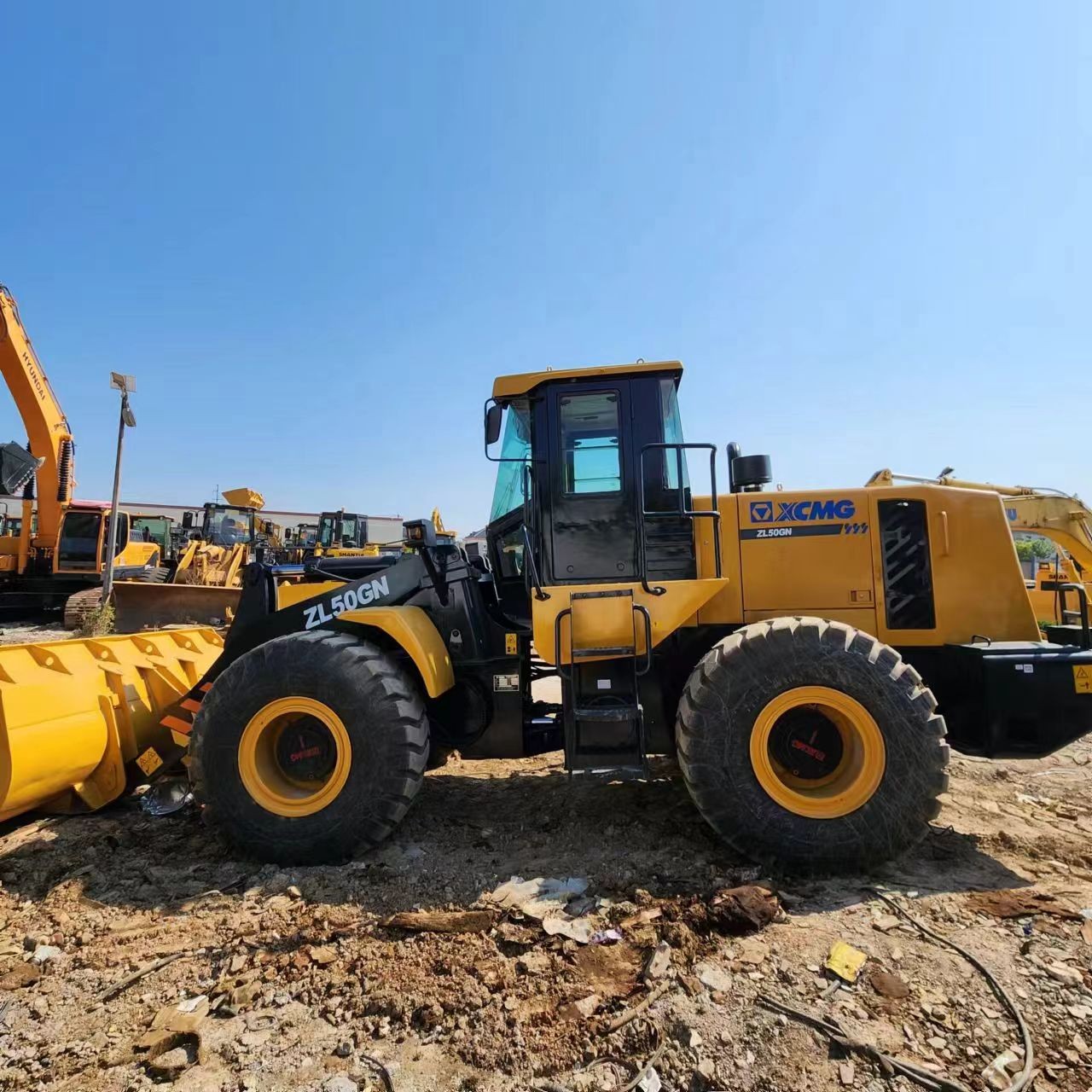

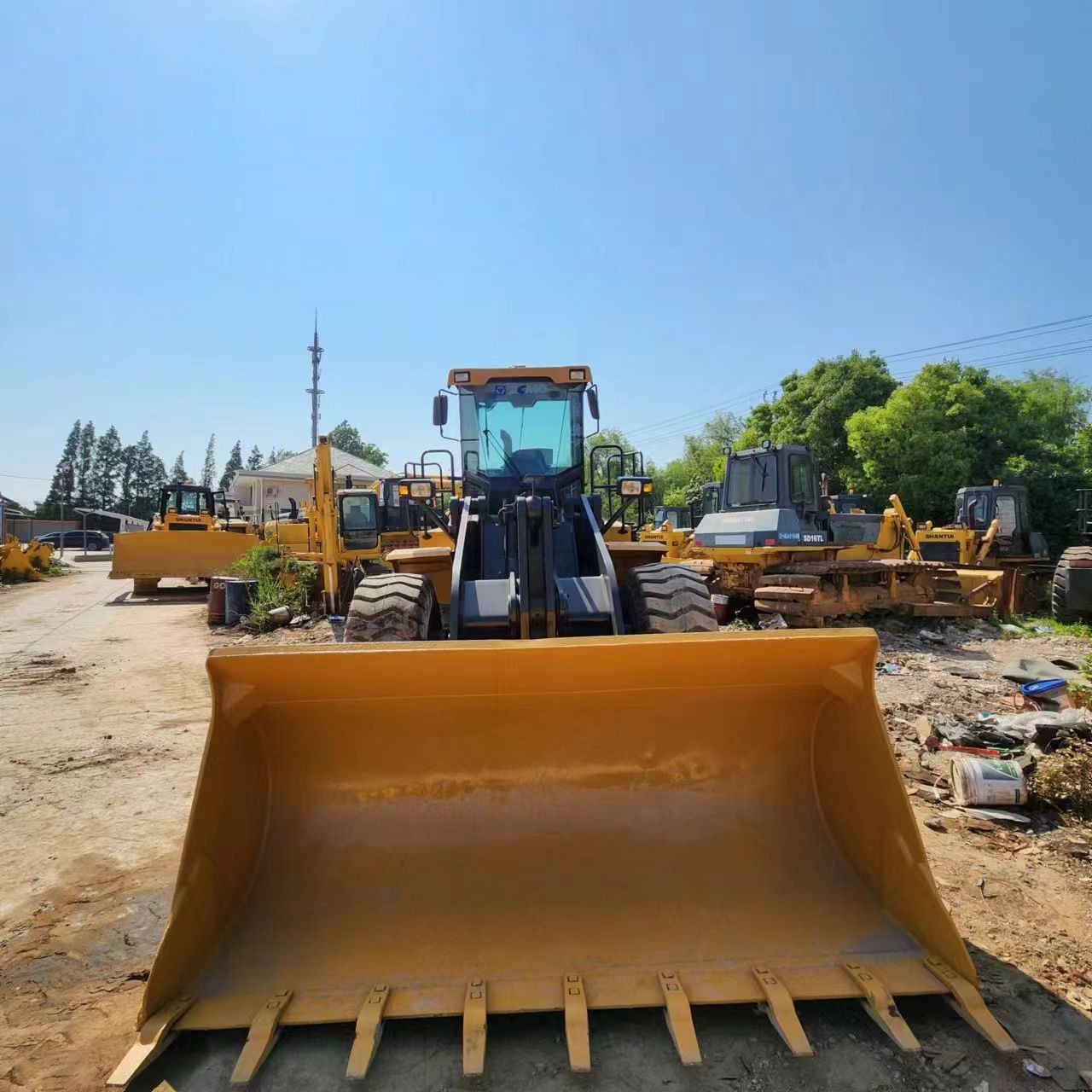

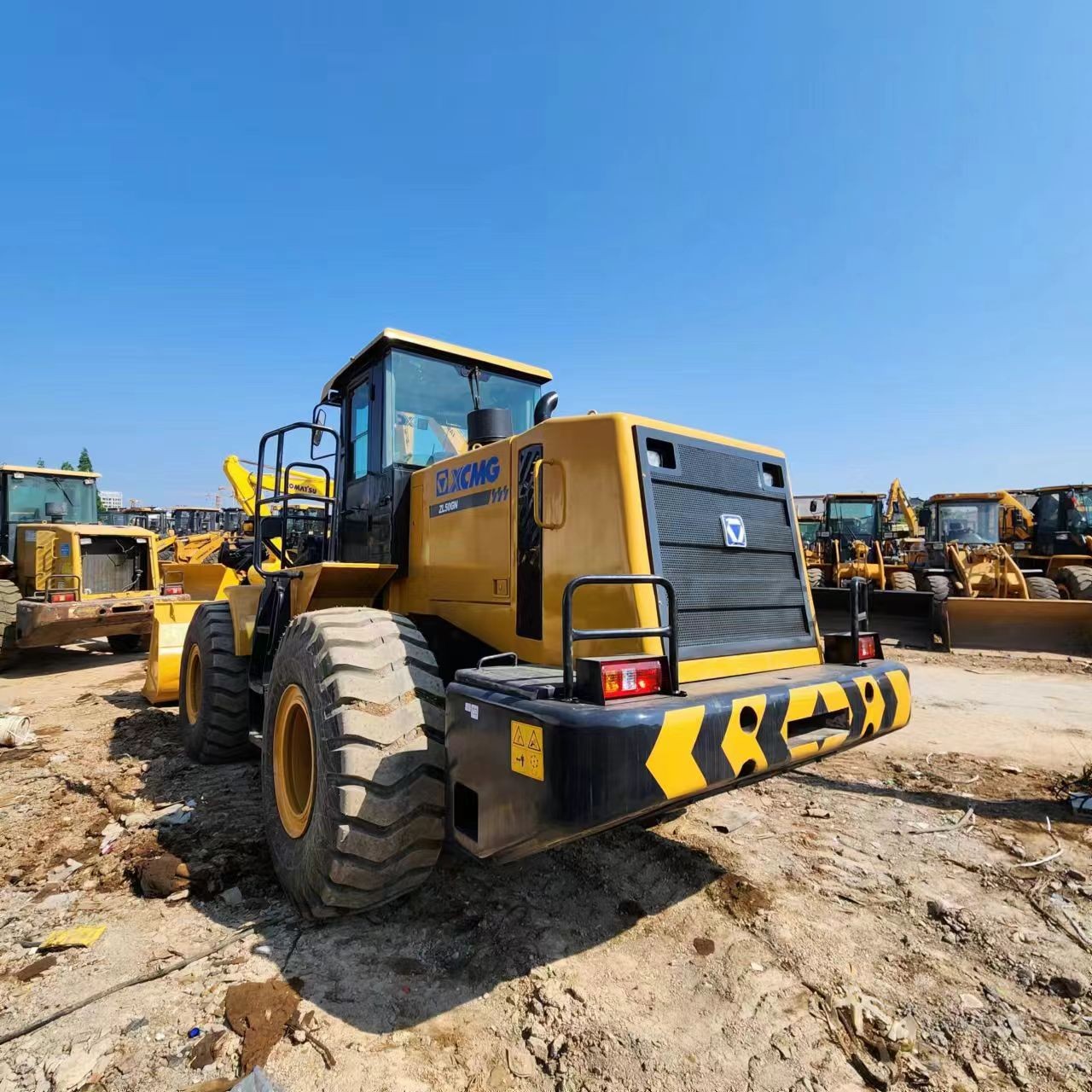

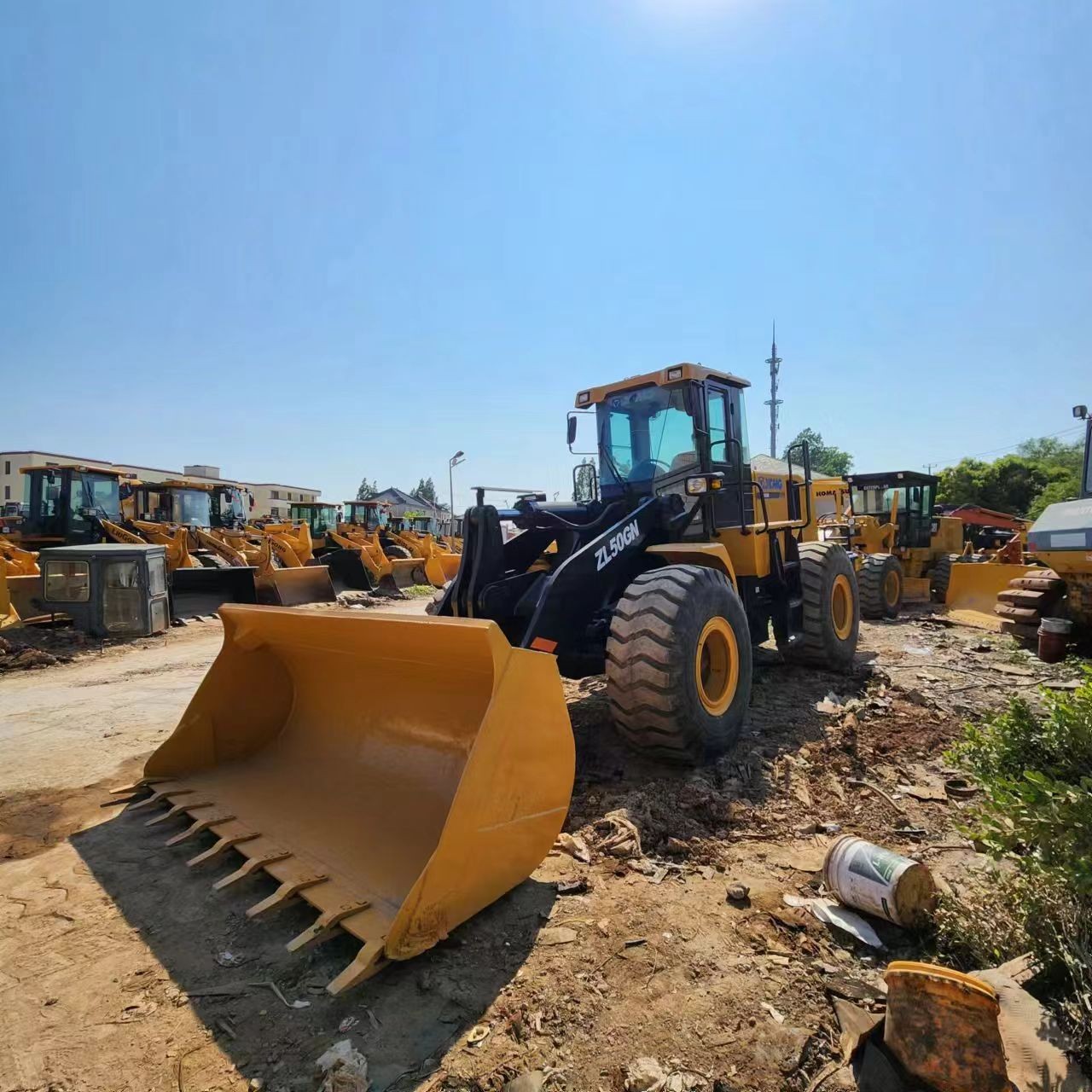

XCMG ZL50GN

General Specifications:

· Engine Power: 162 kW (217 hp) @ 2,200 rpm

· Operating Weight: 17,000 kg (37,480 lb)

· Bucket Capacity: 3.0 m³ (3.9 yd³) to 3.5 m³ (4.6 yd³), depending on the configuration

· Max Dump Height: 3,680 mm (145.7 in)

· Max Reach at Full Lift: 1,400 mm (55.1 in)

· Fuel Tank Capacity: 380 L (100.2 gal)

· Hydraulic System Capacity: 190 L (50.2 gal)

· Cooling System Capacity: 32 L (8.5 gal)

Dimensions:

· Overall Length: 8,120 mm (319.7 in)

· Overall Width: 2,860 mm (112.6 in)

· Overall Height (top of cab): 3,480 mm (137.0 in)

· Wheelbase: 3,150 mm (124.0 in)

· Track Width: 2,270 mm (89.4 in)

· Ground Clearance: 380 mm (15.0 in)

Performance:

· Maximum Travel Speed: 38 km/h (23.6 mph)

· Max Breakout Force: 165 kN (37,100 lbf)

· Max Traction Force: 160 kN (35,900 lbf)

· Rated Load: 5,000 kg (11,020 lb)

· Max Lifting Height: 3,500 mm (137.8 in)

· Max Dumping Height: 3,680 mm (145.7 in)

· Max Reach: 1,400 mm (55.1 in)

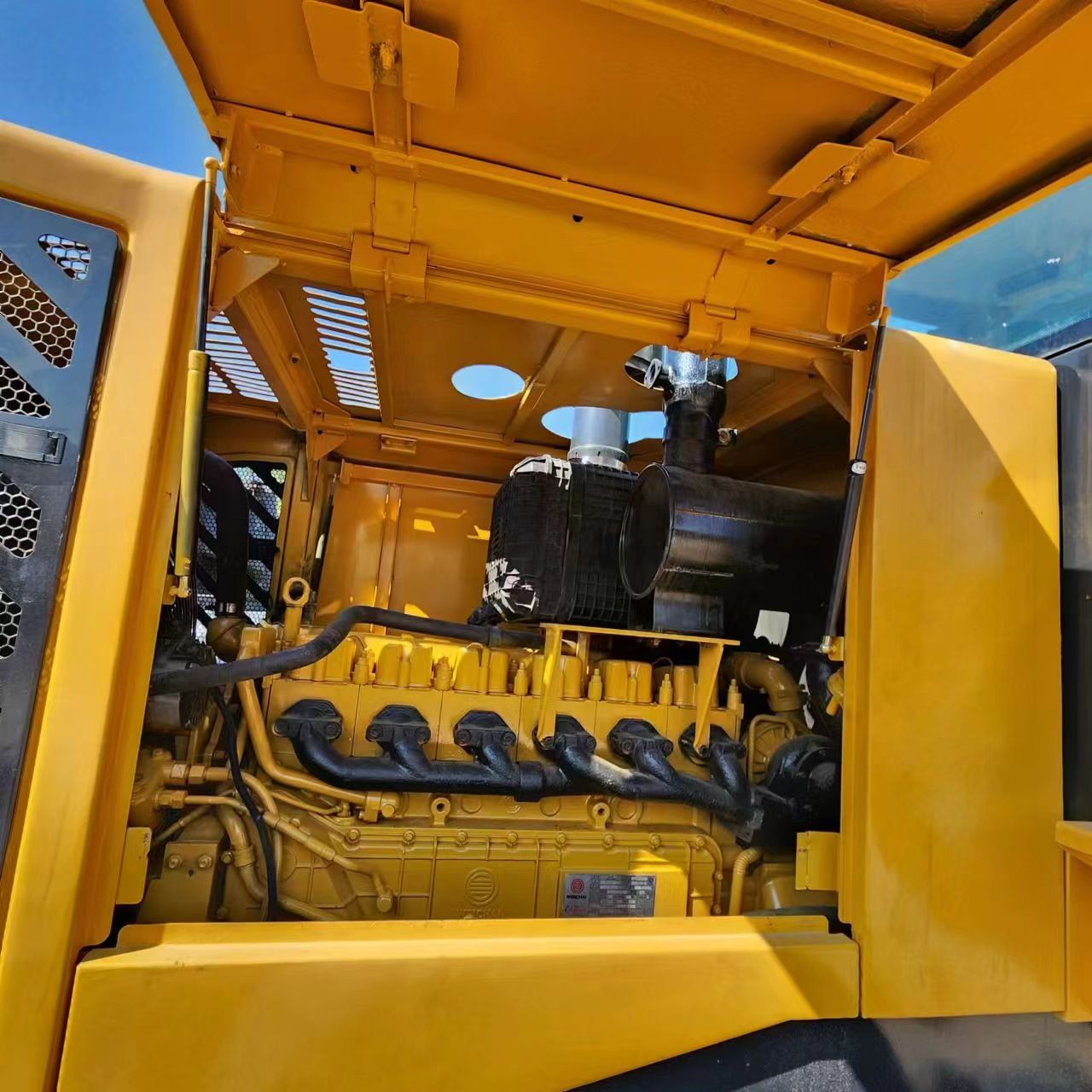

Engine:

· Engine Model: Weichai WP10G180E22

· Engine Type: 6-cylinder, turbocharged, intercooled diesel engine

· Displacement: 9.726 L (594.5 in³)

· Fuel Type: Diesel

· Emissions Standard: Meets Tier 3 / Stage IIIA (varies by region)

· Cooling System: Heavy-duty cooling system for high temperatures and extended work cycles

· Maximum Torque: 1,100 Nm (811.2 lb-ft) @ 1,500 rpm

Hydraulics:

· Hydraulic System Type: Load-sensing, variable-displacement piston pump system

· Pump Flow: 270 L/min (71.3 gpm)

· Hydraulic Pressure: 20 MPa (2,900 psi)

· Lift Cylinder Force: 120 kN (26,900 lbf)

· Tilt Cylinder Force: 85 kN (19,100 lbf)

Transmission:

· Transmission Type: Fully automatic, planetary powershift transmission

· Gears: 2 forward and 1 reverse

· Max Travel Speed: 38 km/h (23.6 mph)

· Gearbox: High-strength, durable planetary gearbox for smooth shifting and extended durability

· Torque Converter: Built-in torque converter for high torque at low speeds

Operator Station:

· Cab Type: ROPS (Roll-Over Protection System) and FOPS (Falling Object Protection System)

· Seating: Air-suspended, adjustable operator seat with lumbar support for comfort during long shifts

· Joystick Controls: Ergonomically designed joystick controls for easy operation of the loader’s hydraulic system

· Climate Control: Air conditioning and heating for operator comfort in all weather conditions

· Visibility: Wide glass panels and optional rearview camera for enhanced visibility and safety

· Display: Multi-functional digital instrument panel showing engine diagnostics, hydraulic pressure, fuel levels, and machine status

Performance Features:

· Advanced Hydraulics: Load-sensing hydraulic system for optimized performance, efficient power usage, and smooth operation

· Enhanced Traction: The ZL50GN offers high traction power with a large ground contact area, ideal for tough working conditions

· Quick Coupler: Optional quick coupler for fast attachment changes, increasing machine versatility

· Auto-idle System: Automatically reduces engine speed when the machine is idle to improve fuel efficiency

· Heavy-Duty Axles: Designed to withstand tough loads and increase the lifespan of the machine in rough environments

· Joystick-Controlled Steering: The ergonomic joystick control for steering and other operations increases productivity and reduces operator fatigue

Undercarriage:

· Track Type: Full-rubber or semi-rubber tracks for durability in rough terrain and on hard surfaces

· Axles and Bearings: Heavy-duty, reinforced axles for improved durability and reliability

· Suspension: Durable suspension system designed for stability on uneven ground

· Tires: High-traction tires designed for enhanced grip, improving performance in wet or slippery conditions

Safety Features:

· ROPS/FOPS Certified: Certified cab for operator protection in case of a rollover or falling objects

· Emergency Shutdown: Quick engine shutdown option in emergency situations

· Stability Control: Designed to ensure machine stability during heavy lifting and operation on uneven ground

· Lighting System: Equipped with LED lights for safe operation during low-light conditions or night work

· Backup Alarm: Audible alarms for reversing to ensure safety around the machine

Miscellaneous:

· Easy Maintenance: Centralized lubrication points and wide-opening engine compartment for easy maintenance and service

· Durability: Built with high-strength materials and components designed to last under heavy-duty conditions

· Fuel Efficiency: Engine and hydraulic systems are optimized for fuel savings, reducing operational costs and extending work periods without refueling

· Versatility: Compatible with a variety of attachments such as forks, rippers, and snowplows, increasing the loader's flexibility for different tasks

Applications:

The XCMG ZL50GN is ideal for:

· Construction: Earthmoving, material handling, grading, and road building

· Mining: Loading and transporting material in mines and quarries

· Agriculture: Handling large quantities of soil, gravel, and other materials

· Industrial Use: Handling raw materials and waste in industrial and manufacturing facilities
